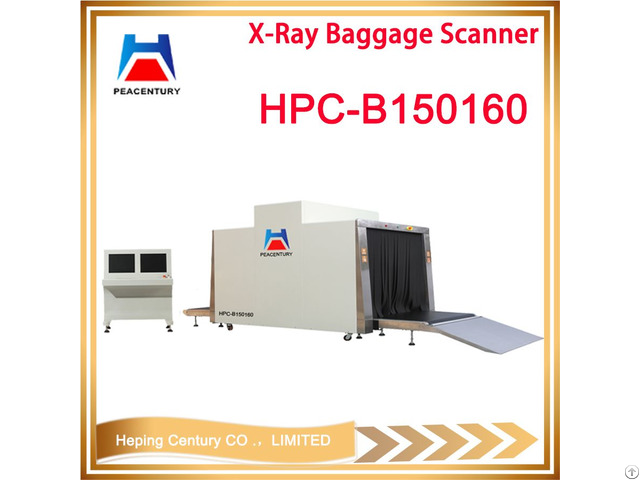

X Ray Baggage Scanner For Airport Luggage Security Checking - China

PRODUCT: X Ray Baggage Scanner TUNNEL SIZE: 1500(W)*1600(H)mm

X RAY LEAKAGE: <1.6μGy/h CONVEYOR MAX LOAD: 500 KGS

FILM SAFETY: ISO 1600 Film-safe PENETRATION: 34mm Steel

ANODE VOLTAGE: 100-160KV SYSTEM POWER: 220VAC (±10%) 50±3HZ

PACKGAE: Plywood Case

X-ray baggage scanner x ray baggage scanner for airport luggage security checking General Specification

Tunnel Size

1500(W)*1600(H)mm

Conveyor Speed

0.22m/s

Conveyor Max Load

200kg

Dose per Inspection

< 1.7μGy/h

Resolution

< 0.0787mm Copper Wire

Spatial resolution

Level: dia1.0mm, Vertical: dia1.0mm

Penetrate resolution

Dia 0.254mm

Penetration

≥ 38-40mm Steel

Film Safety

Guarantee 1900Film

X-ray Leakage

<0.05μGy/h (at a distance of 5cm From external housing)

Multi-energetic distinguish objects

organic objects in orange, inorganic objects in blue, mixture in green

High-energy/low energe

switch from high energy to low energy Advantages:

1 - Famous brand spare parts

a.

Hamamatsu brand detector from Japan

2 - Protective cover on lead curtain to avoid lead pollution

3 - Sound and light alarm

4 - Local network supported General Specification

Tunnel Size: 1000(W)*1800(H)mm

Conveyor Speed: 0.22m/s

Conveyor Max Load: 200kg

Dose per Inspection < 1.7μ Gy/h

Resolution < 0.101mm Copper Wire

Spatial resolution: Level: Dia1.3mm, Vertical: Dia1.0mm

Penetrate resolution: Dia 0.511mm

Penetration: 34mm Steel

Film Safety: Guarantee ISO1600 Film

X-ray Leakage: <0.1 μ Gy/h (at a distance of 5cm From external housing) X-ray Generator

Generate direct: Downward

Generate anger: 80 degree

Anode Voltage: 100~160Kv

Anode power: 0.4 to 1.2mA

Cooling / Duty Cycle: Oil Cooling /100% Image System

X-ray Sensor: L-Shaped Photodiode Array (multi-energetic), 12bit Deep

Monitor: High Resolution Color, LCD Accord, 17 inch

Image Processing: Edge enhancement, image strengthening, image lightening, reducing darkening, image returning, image retrieval.

Image Grey Level: 4096

Image Max Resolution: 1024 * 1280 pixel

Image Processing: 24bit for processing real time

Image storage: Storage 60000 pictures in real time

Zoom: 2, 4, 8, 16 Times Enlarge, Whole screen continuous observation

Multi-energetic distinguish objects: Organic objects in orange, inorganic objects in blue, mixture in green

High-energy/low energy: Switch from high energy to low energy

Assist to detect drug and explosive powder Installation Data

Operation temperature/Humidity: 0º C-45º C/20%-95%(non-condensing)

Storage Temperature/Humidity: -20º C-60º C/20%-95%(non-condensing)

Operation Power: 220VAC(± 10%)50± 3Hz

Power Consumption: 1.0 KW (max), 1.0KW(working)

Noise: <58dB.
