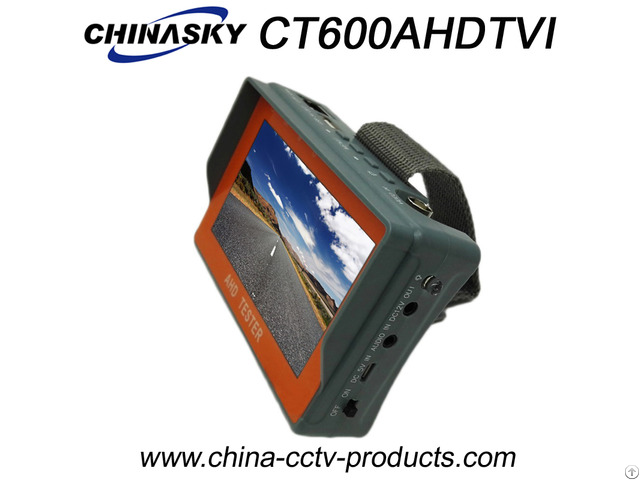

1080p Tft Color Lcd Cctv Tester For Ahd Tvi Analog Cameras Ct600ahdtvi - China

price: contact company for price

Description:

PAL/NTSC Auto Adapt for Analogue Cameras, AHD and TVI Cameras

Support AHD 1080P/960P/720P, TVI 1080P/720P and CVBS cameras,

Support 1ch Audio Test

Support UTP cable test

5VDC output for mobile phone

12VDC output for CCTV Camera

MINI USB Universal Charging Port

Low Power Consumption

Auto Sleep In 3 Minutes Without Signal

Rechargeable Li-ion battery 3.7v, 2600mAreplaceable.

Specifications:

Model

CT600AHDTVI

Video test

Video System

NTSC/PAL Automatically recognize

Video level

1VPP

Display screen

4.3-inch LCD 480 * RGB * 272 (QVGA) resolution, 64K color

Screen adjustment

Video display brightness, contrast, color saturation adjustable, LCD backlight brightness adjustable

Video input / output

1 channel BNC Video IN

HD AHD, TVI Test

SD signal Format

NTSC , PAL

HD video signal

HD AHD, TVI

Resolution

AHD : 720P, 960P, 1080P

TVI: 720P, 1080P

12V power output

Power output

Temporary power output 12V 1A DC

USBX1 5V1A output

Audio test

Audio test

Input audio signal, and played on the internal speaker

Power supply

External power supply

DC 5V(2A)

Battery-powered

Built-in 3.7V li-polymer battery, Capacity 2600mAh

Charge

Charge time 3-4 hours Battery power time 8 hours

Power saving features

Low power consumption, automatic power off, Real-time display of battery level

System settings

Language settings

Chinese, English user selectable

Auto power off

Disable / 5-60 minutes


Cable test

cable test

Test any two or more wire cable Display connect sequence and remote number

LED Light

1*35lm LED light


Working environment and Specifications

-20ºC---+70ºC

30%-90% Rh


Company Contact:


  • Phone: 15757106200

  • Address: 6th Floor, Building No. 10, New World Business Center, Xiacheng District, Hangzhou 310022, Hangzhou,, Hangzhou , Asian , China

  • Email: Email
