12v 3ka Rj45 Port Ethernet Surge Protection Devices High Transmission Frequency - China

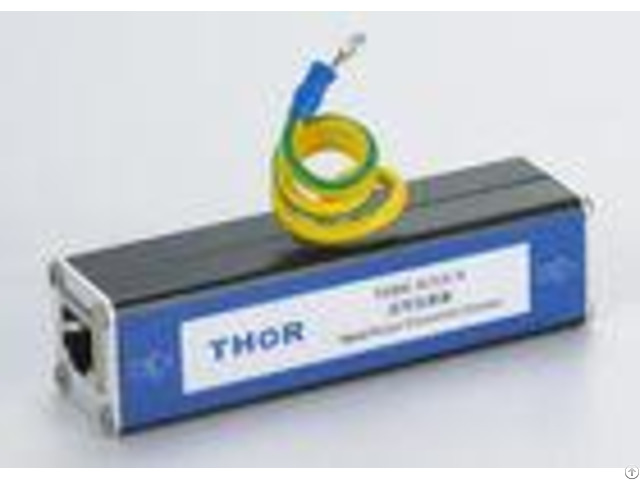

Net work Signal surge protective device Ethernet Cable RJ45 Port Surge Protector Model: TRSS-RJ11 / 45 Color: white Authentication: CE ECM Brief introduction The TRSS-RJ45/8 type network lightning arrester is a lightning protection measure taken by Zhejiang tohr Electric Co., Ltd. to independently develop and manufacture the network system.

It's an overvoltage protector designed for ETHERNET network.

It can be used for servers, workstations, HUB and other RJ45 interfaces.

For example, the input / output terminal of EPRJ45-5/100M is RJ45 interface, and its transmission signal rate can reach 100Mbps or 1000Mbps.

It is mainly used for lightning protection measures against network system.

To prevent high voltage from causing short circuit and combustion and explosion is the important manifestation of internal lightning protection.

Working principle of product The lightning arrester not only can protect the high voltage of the atmosphere, but also can be used to protect the operation of high voltage.

If there is a thunderstorm, a high voltage will appear and the electric equipment may be dangerous.

At this point, the arrester will play a role to protect the power equipment from damage.

The most important function of the arrester is to limit the overvoltage to protect the electrical equipment.

Lightning arrester is a device to make the lightning current flow into the earth, so that the electrical equipment does not generate high voltage.

Product features 1 - excellent performance, small insertion loss, high transmission frequency and low attenuation coefficient, to ensure that the lightning arrester does not affect the system performance.

2 - traffic flow to further improve safety 3 - is easy to install and easy to install 4 - protection voltage exceeds self protection, automatic disconnection and recovery.

Product specification - - - - - - - - Model and specofocation | | TRSS-RJ45-8 | Rated Operating Voltage | Un | 5V/12V | Max continuous operating voltage | Uc | 6V/15V | Voltage protective level | Up(V) | 40/60 | Max discharge current | Imax(8/20S) | 5kA | Nominal discharge current | In(8/20S) | 3kA | Response time | ns | 1 | Adaptive date transfer rate | | 100Mbps | Insertion loss | | 0.3dB | Configuration dimension | | 1042525 | Protective circuit | | 1.2.3.4.5.6.7.8 | Operating condition | | Temp: -40~+70 | | RH95%(25) | | Sea level elevation3km | Remarks | | Other max continuous operating voltage can be customized | - - - - | - - - - Use of attention 1 - installation, it can work steadily for a long time.

If it is found that the transmission performance of the system is reduced or the signal is interrupted due to the cause of surge protection, it should be maintained or replaced in time.

2 - line should strive to be short, thick and straight, so as to reduce the influence of distributed inductance on the ability of lightning electromagnetic pulse.

3 - lightning protector's input port (IN) is connected to the signal channel, and the output terminal (OUT) is connected with the input end of the protected device, so it cannot be connected to the reverse side.

4 - lightning protection device IN as input and OUT as output, the input end is connected with the outside, and the output end of the input end of the connecting device is protected.

Company profile Zhejiang Thor Electric Co., Ltd is committed to meeting the requirements of the European Unions Waste Electrical and Electronic Equipment (WEEE) directive.

This directive requires producers of electrical and electronic equipment to finance the take-back for re-use or recycling of their products placed on the EU market after 2005.
