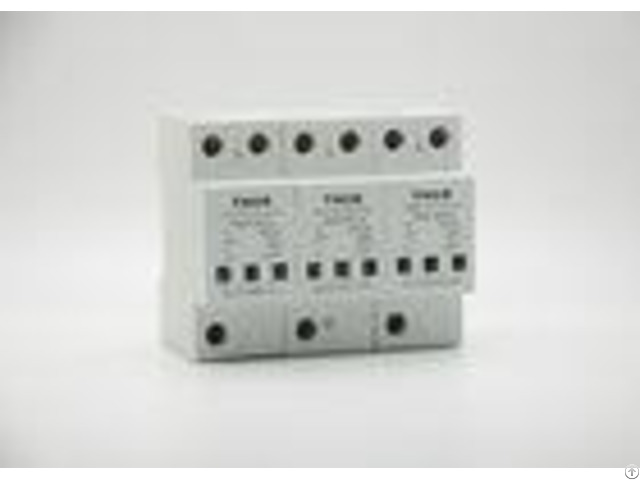

320v 60ka Power Type 2 Surge Protection Device Max Discharge Current 100ka Durable - China

320v surge protector, primary power supply, lightning protector, surge arrester Working principle of product When the surge protector has no voltage, the impedance is very high, which means that the circuit breaker is open.

When the voltage occurs, the impedance drops to a few Europe, and the surge current will flow through the surge protector and will not enter the device.

At the same time, because the surge protector has a small impedance at this time, the voltage on both sides of the surge is relatively small, and because he is in parallel with the protected equipment, it prevents the equipment from suffering from large surge power.

Pressure, so as to play the effect of discharge and pressure limiting.

Product specification 1 - Max continuous operating voltage(UC): 320V 2 - Voltage protective level(UP): 2.7KV 3 - Max discharge current(IMAX): 100KA 4 - Nominal discharge current(IN): 60KA 5 - Response time(NS): <25 Product features 1 - fast lightning protection 2 - alarm indicating device, normal (green), red (fault).

3 - use temperature control protection circuit, built-in thermal protection 4 - limit the precision of the voltage to say how much! Notice of product 1 - device and the SPD set up the equipotential connection.

2 - the energy coordination of multilevel SPD 3 - data line: more than 2.5mm2; when the length of more than 0.5 meters of more than 4mm2 4 - grounding lines should be short, thick and straight, so as to reduce the influence of distributed inductors on the ability of lightning electromagnetic pulse.

Brief introduction Surge protector is mainly used for lightning protection measures in family residential circuit system.

It is an important manifestation of internal lightning protection.

According to the characteristics of the circuit system, we adopt multi-level protection, which can maximize the voltage into the underground, and better achieve the role of lightning protection and overvoltage.
