4ch Digital Output Supports 10hz 300khz High Speed Pulse Relay With 1 Rs485 - China

M Series Modbus Remote I/O Module Table

Model Descriptions DC Output DC Input Classic Power Consumption

M100 1 RS485, 2 DI, 2 AI, 2 DO(Sink) or Relay 1 DC 12~36VDC 0.84W-1.32W

M110 1 RS485, 4 DI, 4 DO(Sink) or Relay 1 DC M120 1 RS485, 4 DI, 4 AI, 2AO, 4 DO(Sink) or Relay 1 DC 0.84W-1.32W

M130 1 RS485, 8 DI, 4 DO(Sink) or Relay 1 DC 12~36VDC 0.64W-1.84W

M140 1 RS485, 8 DI, 8 DO(Sink) or Relay 1 DC M150 1 RS485, 8 DI, 4 AI, 4 DO(Sink) or Relay 1 DC M160 1 RS485, 8 DI, 8 AI, 8 DO(Sink) or Relay 1 DC M200 1 RS485, 2AO 1 DC 12~36VDC 0.84W-1.32W

M210 1 RS485, 4 DI 1 DC 0.84W-1.32W

M220 1 RS485, 4 DO(Sink) or Relay 1 DC M230 1 RS485, 4 AI 1 DC M240 1 RS485, 4 RTD, 2/3 wire PT100/pt1000 --- 0.6W-0.84W

M310 1 RS485, 8 DI 1 DC 12~36VDC 0.64W-1.84W

M320 1 RS485, 8 DO(Sink) or Relay 1 DC M330 1 RS485, 8 AI 1 DC M340 1 RS485, 8 RTD, 2/3 wire PT100/pt1000 、 12~36VDC 0.6W-0.84W

M410 1 RS485, 16 DI 1 DC 0.74W-0.96W

M420 1 RS485, 16 DO(Sink) or Relay 、 0.6W-0.85W Special instructions for ordering

1)If the model provides digital input, the DIN default type: wet contact, optional: dry contact.

The input type cannot be changed after manufacturer delivered.

The DIN1 default is high-speed count mode; it can be changed to low-speed count mode by open the shell and change the internal jumper.

If require dry contact input, please note when ordering, if DIN1 require high-speed pulse count mode then must be wet contact.

2)If the model provides digital output, the DO default type: SINK, optional: Relay.

The output type cannot be changed after manufacturer delivered.

The DO1 supports PWM high-speed pulse output, the output duty cycle from 10-90%; DO2 can be used to control the direction of the stepper motor.

If require relay output, please note when ordering, if DO1, DO2 used for high-speed pulse output then must be Sink.

3)The model number: M240, M340 support thermal resistance temperature transmitter default type: PT100, optional: PT1000, if you need PT1000 type of thermal resistance, please note when ordering.

4)The valid number of I / O ports corresponding to the model number is described in the Model List, the not included I/O port in the model is invalid, although in the hardware reserved them.

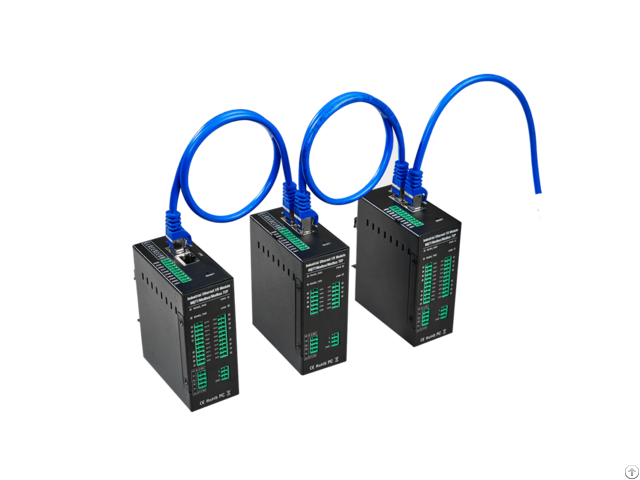

The M Series Modbus Remote I/O Module is an industrial class, isolated designed, high reliability, high stability and high precision data acquisition module, embedded 32-Bit High Performance Microprocessor MCU, provides a RS485 interface.

It provides multi I/O, supports standard Modbus RTU, can be intergraded into SCADA, OPC server, HMI and other automation systems.

It is design for working in the harsh industrial application environment, widely used in a variety of industrial automation, security monitoring system, automatically measurement and control system.

The M Series Modbus Remote I/O module provides different I/O ports for variety applications.

Includes optical-isolated digital inputs, compatibles dry contact and wet contact, supports max 10MHz high speed pulse counter, the DIN1 can be used for encode, digital outputs supports 10Hz~300Khz high speed pulse output or relay outputs, the DO1 supports PWM high-speed pulse output, the output duty cycle from 10-90%; DO2 can be used to control the direction of the stepper motor, isolated 12bits analog inputs, supports 0~5V, 0~10V, 4~20mA, 0~20mA analog signal, 12bits analog outputs, supports 0~10VDC signal output, resistance thermal detector inputs compatibles 2/3 wires PT100 and PT1000 - All of the I/O ports are high sampling frequency and special filtering strategy to ensure its reliability.

The M Series Modbus Remote I/O module can work at wide working voltage range, the range is 12 ~ 36VDC with anti-reverse protection design.

Also, it provides 1channel 12~36VDC power output for external device to save wiring cost.

2 - Standard Packing List

Remote I/O Module X 1; User Manual X 1.

Note: The package does not include AC/DC Adaptor.

Optional: 35mm Standard DIN rail fixed Bracket USB to RS485 Converter
