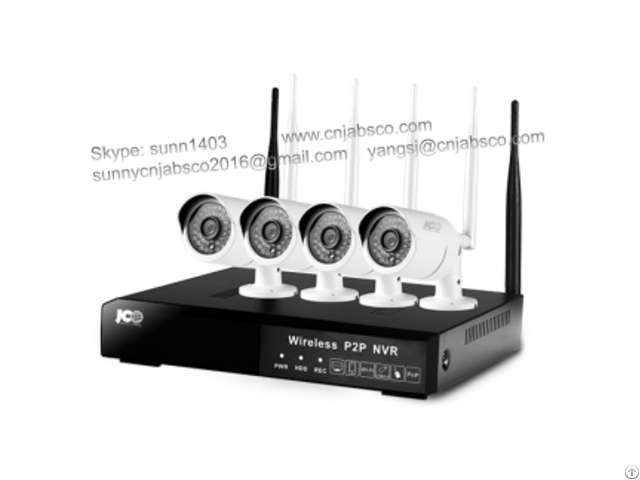

960p & 720p Wifi Nvr Kit App For Remote Monitoring 4ch & 8ch Wireless Cam - China

400m for WiFi range in open filed

300Mbps transmission speed, built-in WiFi router

Plug and play, auto connecting between recorder and IPC

Mixed usage of wireless & wire

1 SATA, 2 WiFi antenna, 2 USB, 1 VGA, 1 HDMI

P2P for smart phone, PC, PAD, Web remote monitorin

Model JG-QN-0401-TW-B17 JG-QN-0801-TW-B17

WiFi network video recorder

System

Main Processor HI3520D HI3535

IP camera Input 4ch 1.3MP 8ch 1.3MP

WiFi Range 400M(open filed)

Operation System Embedded LINUX

System Resource Real-time recording/ playback/ network operation/ USB backup

User Interface

User Interface 24 bit graphical operation system, support mouse operation

Picture Display 1/4 1/ 4/ 9

Picture Decoding BaseLine Profile / Main Profile / High Profile

Video Input 4ch 1.3MP&1.0MP input 8ch 1.3MP&1.0MP input

Motion Detection support

Recording and Display

Recording Type Alarm>Manual>Dynami c monitoring>Timing

960P/720P/D1/VGA

Local Playback 4 ch ( max 1ch 1.3MP, 4ch 960H ) 4 ch ( max 1ch 1.3MP )

Recorder Checking Time/date/issue/channel search

Backup Type USB, removable hard disk

Auxiliary Interface

Video Output 1ch VGA, 1 ch HDMI

Ethernet 1*RJ-45 ( 10/100Base-T )

2*WIFI wireless antenna

USB Interface 2*USB 2.0

SATA 1 (Max.

4T )

General

Power Supply DC12V/2A

Working Environment 0℃～50℃;< 90%RH

Net Weight ≤1Kg

Dimension 483*89*433(mm)

WiFi Camera

Camera

Sensor 1/3” CMOS

Effective Pixels 1.3MP, 1280(H)*960(V)

Min.

Illumination Color: 0.05Lux*F1.2; B/W: 0.01Lux*F1.2

Electronic Shutter NTSC: 1/30---1/10000S; PAL: 1/25---1/10000S

Max.

IR Distance 30M

Focal Length 3.6mm (6mm optional)

Lens Type Fixed lens


Compression H.

264

Coding 32 Kbps~8Mbps, BaseLine Profile / Main Profile / High Profile

Frame Rate 50HZ: 25fps; 60HZ: 30fps

Resolution 1280*960/1280*720/720*576 (D1)/640*480(VGA)/352*288 (CIF)/ 176*144(QVGA)

Image Setting brightness/contrast/chrom a/saturation

Mirror Image Horizontal/Vertical/Oppos ite Angles/Normal

AD Sampling Precision 12bit

Network

P2P Function Mobile Phone/ PC/ PAD

Smart Alarm motion detection/shelter alarm/IP cable no connection/IP address conflict

General Function double stream/ heartbeat/ mirror/ shelter / anonymous access

Interface

Power Supply DC12V/1A

WiFi Antenna 1

General

Working Environment -30℃～60℃;< 95%RH

Ingress Protection IP66

Dimension(L*W*H) 7.7cm*6.5cm*6.6cm

Net Weight 0.37kg

Company Contact:

• Posted By: JCO Electronic Technology Co.,Ltd

• Phone: +86 138 2883 6078

• Address: Block 2,Zhongpo Industrial Park, Dongpo Rd, Bantian, Longgang District, Shenzhen 5188129, China., Shenzhen City (深圳市), Guang Dong (广东省), China

• Email:

• Website: http://www.cnjabsco.com

• Business Description: JCO established in 2001, located in Shenzhen, China.

  We are professional manufacturer for CCTV products.

  Our main products are : wireless nvr kit, pan & tilt smart PTZ, wifi cube camera, smart wifi doorbell, IP bullet & dome camera, fisheye camera, network video recorder, IP IR high speed dome.

  With over 80 engineers in R & D department, over 5000㎡ factory, ISO verified, we develop all chipset by ourselves.

  Welcome for OEM/ODM orders.
