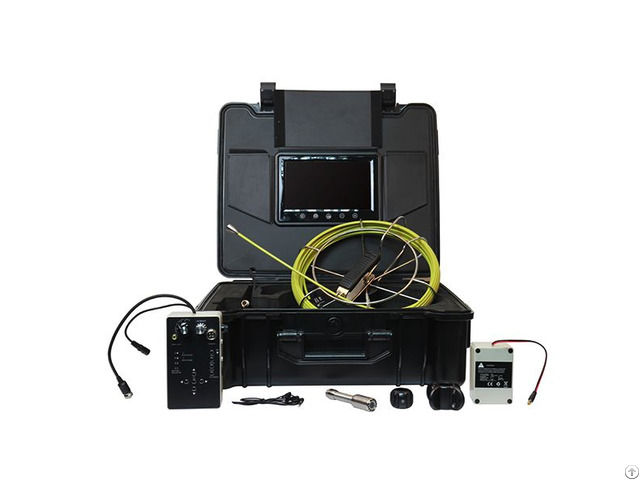

9inch Push Rod Cable Camera System For Sewer Inspection Detector - China

wps-910dn

camera:

camera size: ø23mmx120mm

sensor size: 1/4 inch

view angle: 120°

leds adjustable

camera work current: 100m；

camera power supply: dc 12v

camera light: 12pcs white leds

totalpixels: pal: 710x57 6;

ntsc: 720x480

camera glass material: sapphire glass

camera shell material: stainless steel

control box:

dvr power supply: 12v

dvr work current: 200ma

storage medium: sd card(max 32g)

digital clock and digital calendar

battery level display

dvr total pixels: 720x576 (d1)

picture snap and movie record

movie format: avi

microphone audio record

stereo earphone output

cable wheel:

cable size: ø320mmx110(h)

wire material: fiberglass rod

fiberglass length: 30m

fiberglass diameter: ø4.8mm

fiberglass color: yellow

monitor:

monitor type: 16: 9 high definition digital lcd

physical resolution: 800*480 60hz

synchronization range: 30-80 khz horizontal, 55-75 hz vertical

dot pitch: 0.1905(w)*0.1905(h) mm

response time: 12ms

osd: remote control/touch button control

color: 16.7 million colors

brightness: 350 cd/m2

contrast ratio: 400: 1

viewing angle: right and left 170 ° (85 ° / 85 °), up and down 160 ° (70 ° / 90 °)

backlight lamp life: 50, 000

video input format: analog rgb, video format: ntsc / pal (auto)

case:

size: l520xw435xh200mm

material: engineering plastics

empty case weight: 5.9kg

water proof

color: orange/green/black/orange
