Computer Room Ethernet Surge Protection Devices Aluminum Alloy Low Output Residual Pressure - China

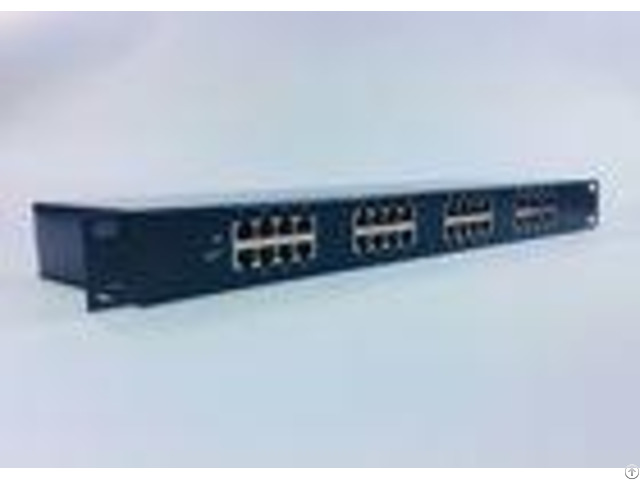

Computer room dedicated rack type network surge protection device Model: Trss-rj11 / 45 colour: white Authentication: CE ECM Product Details TRSS-RJ45/8 network lightning protection device is designed and manufactured according to the standard of IEC and GB, and meets the requirements of IEEE802.3AT.

It is suitable for the power supply of the communication equipment such as the server, wireless AP, network camera, network switch and so on, which can supply the power supply of the POE network wire, the network signal circuit, the integrated integrated design, and the installation is convenient and applicable.

In multiple network signal line centralized protection, it is mainly used for lightning (over voltage) protection along network signal lines, such as 8, 16 and 24 Ethernet switches.

Product features 1 - multi-functional overvoltage protection, lightning and overpressure are no longer afraid of disasters.

2 - the aluminum alloy is strong and durable, protecting your computer.

3 - low output residual pressure to further ensure safety 4 - transmission performance, excellent insertion loss, high transmission frequency and low attenuation coefficient, ensure that the lightning arrester does not affect the system performance.

Use of attention 1 - lightning arrester must be reliably connected to the ground wire of the lightning protection system, and the connection line is short, thick and straight.

2 - when installing, attention should be paid to cables coming in and out of surge protective devices, so as to avoid the two coupling of surge.

3 - please recognize the interface and the way of connection.

4 - identify the input / output interface identifier of the lightning protector, input the external line and output the device.

Product specification - - - - Model and specofocation | | TRSS-RJ45/4 | TRSS-RJ45/8 | Rated Operating Voltage | Un | 5V/12V | Max continuous operating voltage | Uc | 6V/15V | Voltage protective level | Up(V) | 40/60 | Max discharge current | Imax(8/20S) | 5kA | Nominal discharge current | In(8/20S) | 3kA | Response time | ns | 1 | Adaptive date transfer rate | | 100Mbps | Insertion loss | | 0.3dB | Configuration dimension | | 1042525 | Protective circuit | | 1.2.3.6 | 1.2.3.4.5.6.7.8 | Operating condition | | Temp: -40~+70 | | RH95%(25) | | Sea level elevation3km | Remarks | | Other max continuous operating voltage can be customized | - - - - Working principle of product The working principle of network lightning arrester is to present high resistance open state with a low voltage, low resistance short circuit state at high pressure, and a combination of over voltage protection electronic devices which can withstand hundreds of amperes and large current in parallel on power supply line and signal transmission line.

When encountering lightning and high voltage and high current, it will appear short circuit immediately, and at the same time, the total power switch will be disconnected, so that the computer equipment will be protected.

It can be used not only to protect the high voltage of the atmosphere, but also to protect the high voltage.

If there is a thunderstorm, a high voltage will appear and the electric equipment may be dangerous.

At this point, the arrester will play a role to protect the power equipment from damage.

The most important function of the arrester is to limit the overvoltage to protect the electrical equipment.

Lightning arrester is a device to make the lightning current flow into the earth, so that the electrical equipment does not generate high voltage.

Company profile Incorporated in 2006, Zhejiang Thor Electric Co., Ltd has built everything to offer a wide range of innovative and reliable surge protection solutions and products.

Thor is following the international quality system standards, is ISO 9001 certified and our technical standards are in line with GB18802.1-2011/IEC61643-1 .

Product packaging: Carton packing Transportation method 1 - Express company: FEDEX, UPS, DHL, TNT 2 - Trains, ships, aircraft transport
