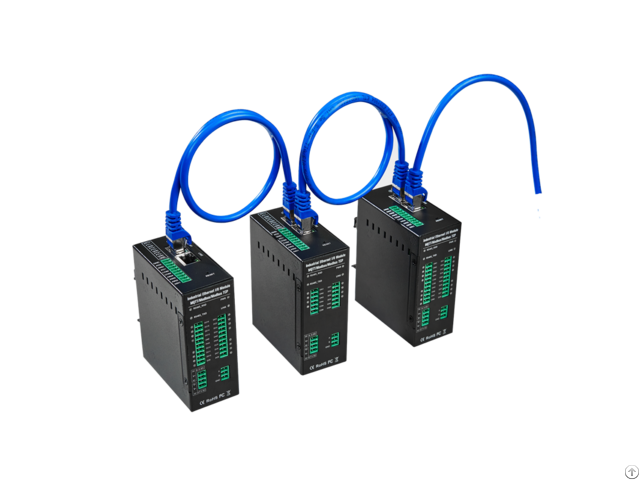

Ethernet Remote I O Data Acquisition Module With 2rj45 1rs485 4di 4do For Automation System - China

The M Series Modbus Remote I/O Module is an industrial class, isolated designed, high reliability, high stability and high precision data acquisition module, embedded 32-Bit High Performance Microprocessor MCU, provides a RS485 interface.

It provides multi I/O, supports standard Modbus RTU, can be intergraded into SCADA, OPC server, HMI and other automation systems.

It is design for working in the harsh industrial application environment, widely used in a variety of industrial automation, security monitoring system, automatically measurement and control system.

The M Series Modbus Remote I/O module provides different I/O ports for variety applications.

Includes optical-isolated digital inputs, compatibles dry contact and wet contact, supports max 10MHz high speed pulse counter, the DIN1 can be used for encode, digital outputs supports 10Hz~300Khz high speed pulse output or relay outputs, the DO1 supports PWM high-speed pulse output, the output duty cycle from 10-90%; DO2 can be used to control the direction of the stepper motor, isolated 12bits analog inputs, supports 0~5V, 0~10V, 4~20mA, 0~20mA analog signal, 12bits analog outputs, supports 0~10VDC signal output, resistance thermal detector inputs compatibles 2/3 wires PT100 and PT1000 - All of the I/O ports are high sampling frequency and special filtering strategy to ensure its reliability.

The M Series Modbus Remote I/O module can work at wide working voltage range, the range is 12 ~ 36VDC with anti-reverse protection design.

Also, it provides 1channel 12~36VDC power output for external device to save wiring cost.

Mainly Features

Embedded 32-Bit High Performance Microprocessor MCU, inbuilt watchdog;

Power supply 12~36VDC with over voltage and phase-reversal protection;

Optical isolated digital input(Compatible Dry or Wet type);

DIN1 supports max 10MHz high speed pulse counter, can be used to encode measurement;

Digital output(Sink) or relay output, supports 10Hz~300KHz high speed pulse output;

DO1 supports PWM high-speed pulse output, the output duty cycle from 10-90%; DO2 can be used to control the direction of the stepper motor;

Isolated analog input, 12-bit resolution, supports 0~20mA, 4~20mA, 0-5VDC, 0-10VDC;

Analog output, 12-bit resolution, supports 0-10VDC;

RTD input, supports PT100 and PT1000 resistance sensor, compatible 2 or 3 wires;

High sampling frequency and special filtering strategy to ensure reliability;

1 RS485 Serial port, supports Modbus RTU slave;

Provides 1 channel VDC power source output for external device, saving wiring cost;

LED instructions work status, with reset button to reset, easy on-site installation and commissioning;

Using metal shell, protection class IP30 - Metal shell and system security isolation, especially suitable for industrial applications in the field;

Small size, L105 * W88 * H30mm, compatible wall installation and DIN35mm industrial rail installation.

M Series Modbus Remote I/O Module Table

Model Descriptions DC Output DC Input Classic Power Consumption

M100 1 RS485, 2 DI, 2 AI, 2 DO(Sink) or Relay 1 DC 12~36VDC 0.84W-1.32W

M110 1 RS485, 4 DI, 4 DO(Sink) or Relay 1 DC M120 1 RS485, 4 DI, 4 AI, 2AO, 4 DO(Sink) or Relay 1 DC 0.84W-1.32W

M130 1 RS485, 8 DI, 4 DO(Sink) or Relay 1 DC 12~36VDC 0.64W-1.84W

M140 1 RS485, 8 DI, 8 DO(Sink) or Relay 1 DC M150 1 RS485, 8 DI, 4 AI, 4 DO(Sink) or Relay 1 DC M160 1 RS485, 8 DI, 8 AI, 8 DO(Sink) or Relay 1 DC M200 1 RS485, 2AO 1 DC 12~36VDC 0.84W-1.32W

M210 1 RS485, 4 DI 1 DC 0.84W-1.32W

M220 1 RS485, 4 DO(Sink) or Relay 1 DC M230 1 RS485, 4 AI 1 DC M240 1 RS485, 4 RTD, 2/3 wire PT100/pt1000 --- 0.6W-0.84W

M310 1 RS485, 8 DI 1 DC 12~36VDC 0.64W-1.84W

M320 1 RS485, 8 DO(Sink) or Relay 1 DC M330 1 RS485, 8 AI 1 DC M340 1 RS485, 8 RTD, 2/3 wire PT100/pt1000 、 12~36VDC 0.6W-0.84W

M410 1 RS485, 16 DI 1 DC 0.74W-0.96W

M420 1 RS485, 16 DO(Sink) or Relay 、 0.6W-0.85W
