Fiber Optic Plate Fop - China
price: contact company for price

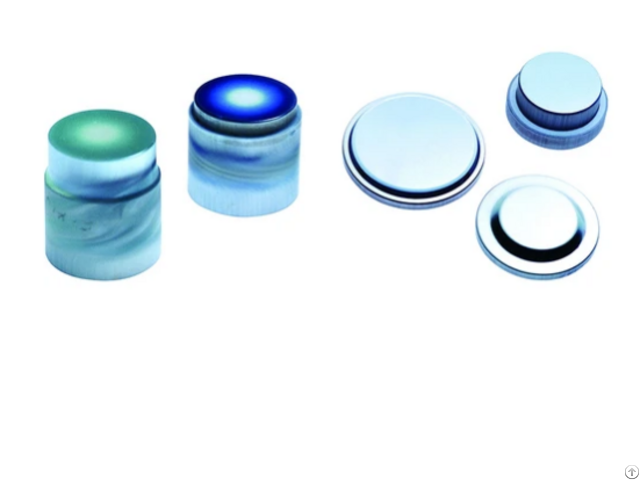

Fiber Optic Plate (FOP) is composed of millions of fibers fused together in parallel array.
It is capable of transferring high-resolution image from one end to another.
So it is widely used in high-resolution image transferring, magnification and inverting in image intensifiers, CRT/LCD display, CCD couple, also it can be used for field-flattening and distortion correction.
Compared with traditional optic system, FOP has advantages of light weight, small size, high resolution, big numerical aperture and good transmission, etc.
It mainly includes fused fiber optic faceplate, fused fiber optic twister and fused fiber optic taper, etc.
Except the standard 18mm and 25mm and 40mm fiber optics as well as twisters and tapers for image intensifiers, We are also in a position to supply wide range of FOP from 2.5µm~25µm in fiber size, 5mm~100mm in FOP diameter and 1mm~50mm in FOP thickness, with straight or plano-concave formats in shapes of round, square and rectangular.
Features: Fiber size: 6µm
Resolution: 102lp/mm
Numerical aperture: ≥1
Thermal expansion coefficient: 86×10 ℃ (20-300℃)
Vacuum tightness: ≤10 mbar•1/s
Collimated transmission: ≥65% (3mm thickness sample)
Diffusion light transmission: 35% ( 2×3mm thickness sample)
Enhanced edge response: with EMA
Photocathode/phosphor screen compatibility:yes Applications: Image Intensifiers
ICCD
Company Contact:
- Posted By: ECOR TECH CO.,LTD.
- Phone: 008613580998381
- Address: 106 Fengzhe Dong Road Guangzhou,, Guangzhou , Guangdong , China
- Email:
- Website: https://www.usmartsensor.com/
Published date: May 17, 2022
- Business Description: SmartSensor is a professional design and manufacture of thermal imaging, night vision, infrared camera systems, has nearly 20 years of products' development and production experience.
We have a large number of personnel of research and development of cutting-edge technology in the industry and security.
We create a platform for technical exchange with domestic universities.
Our independent R & D team develop our products from key components to finished products.
Leading core technology, strong R & D capability and innovative team spirit brings us strong competitiveness.
Our products include Image Intensifier Tubes, Uncooled Infrared Detector, Uncooled Infrared Core, Infrared Thermal imaging Lens, Thermal Camera, Thermal imaging Lens, Thermal Imaging Scope, Night Vision System, Microdisplay, and other thermal imaging system produtcts, have a good reputation and market share in the industry, military and security.
