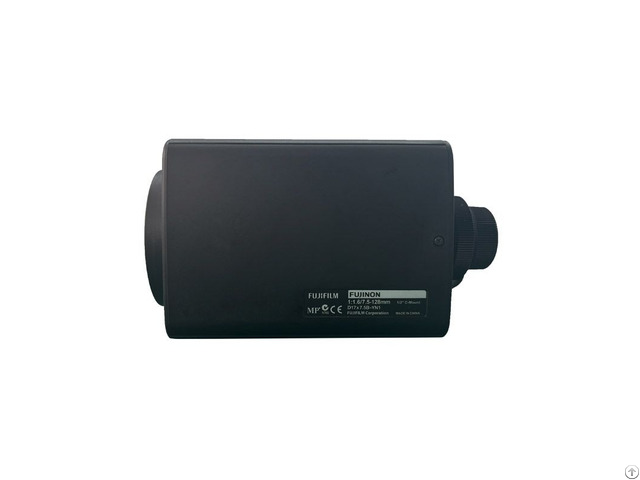

Fujinon D17x7 5b Yn1 7 58 128mm 1 2 Ccd C Mount Zoom Lens - Taiwan

Product Introduction:

　　

The D17X7.5B-YN1 C-Mount 7.5-128mm F1.6 Motorized Telephoto Zoom Lens from Fujinon is suitable for use with 1/2, 1/3, and 1/4" cameras.

The compact design fits in a small housing, miniaturizing the overall system.

The 17x optical zoom closes in on distant objects without compromising quality.

The built-in ND filter for T360 supports high sensitivity cameras.

Product features:

1．The use of low dispersion, high refraction glass, with unique precision machining and assembly technology, improve the optical performance

2．The standard configuration has a locking knob to prevent focus and zoom deviation caused by slight vibration 3．Compact design fits in a small housing, miniaturizing the overall system

4．Wide aperture of F1.6, best suited for surveillance in dark places

5．Built-in potentiometer, supporting preset

6．Built-in ND filter for T360, supporting high sensitivity camera

Type D17x7.5B-YN1

Pixel 2 million

Sensor size 1/2

Mount C

Focal length 7.5-128mm

Zoom Ratio 17x

Iris Range F1.6-F16

Maximum relative aperture (W/T) 1：1.6

Image size Ø8mm（6.4mmx4.8mmï ¼‰

Control Mode Zoom Speed

Focus Speed

Iris DC Iris Control

M.

O.

D ∞-1.5m

Back focal distance (in air）(mm) 15.1mm

Flange focal length (mm)(in air）(mm) 17.526mm

Front lens movement 3.7mm

Field Angle A)Horizontal （Wï¼ ‰ 45° 36′ （T） 2° 54′

B)Vertical （W） 34° 42′ （T） 2° 12′

C)Diagonal （W） 55° 48′ （T） 3° 36′
