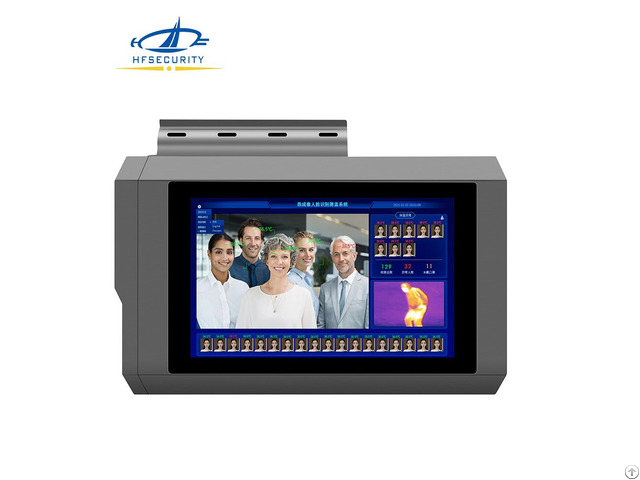

Hf Mc13 Ai Thermal Imaging System For Temperature Measurement - China

1 - Imported high-precision and high-resolution thermal imaging modules;

2 - High-frame camera, high-definition pictures can be taken when the human body is moving fast;

3 - It comes with an 8-inch touch screen, which can be used directly without an external display, or an HDMI external large screen;

4 - Support simultaneous identification and temperature measurement of 20 people at the same time;

5 - Easy to use, ready to use after power on;

AI specification

Model HF-MC13

Screen size 8inch, IPS LCD screen

brightness 285 LU

resolution 800*1280HD screen

Camera resolution 200W, 1080P

resolution 1

Type RGB webcam

Aperture F2.0

Focal Length 6mm

White balance Automatic

Wide dynamic support

Port video HDMI2.0 Type-A port

Relay output 1 pcs relay port

Network port 1pcsRJ45 10M/100M, WIFI

USB 1way USB Interface

Measure temperature function Face measure Support detection and tracking of 20 people at the same time

Distance 1--5 meter

Precision Within 2 meter≤ ±0.3℃, 3-4 meter≤ ±0.4℃, 4-5 meter≤ ±0.5℃ range 32℃~42.5℃

Resolution 206 X 150 / 320 X 240

normal temperature release Support Temperature alarm Support Mask Support Abnormal temperature Support Specification Protection level IP42, waterproof

Power supply DC12V(±10%)

Temperature -10℃～60℃

Humid 10%～90 %

Power consumption 10W MAX

size 250mmX170mmX200mm(L* W* H)

Weight 3KG
