Home 100m Ethernet Surge Protection Devices Poe Lightning Arrester For Mobile Base Station - China

Home 100M adaptive Ethernet power network combo lightning arrester POE monitoring camera lightning protector Model: Trss-rj11 / 45 colour: white Authentication: CE ECM Working principle of product The network arrester can be used not only to protect the high voltage of the atmosphere, but also to protect the operation of high voltage.

If there is a thunderstorm, a high voltage will appear and the electric equipment may be dangerous.

At this point, the arrester will play a role to protect the power equipment from damage.

The most important function of the arrester is to limit the overvoltage to protect the electrical equipment.

Lightning arrester is a device to make the lightning current flow into the earth, so that the electrical equipment does not generate high voltage.

Product features 1 - The transmission distance can be transmitted by 100m! 2 - Self protection voltage exceeds self protection, automatic disconnection and recovery.

3 - The metal shielding layer prevents electromagnetic interference and makes the signal more stable.

4 - The shell is strong and durable with aluminum alloy, protecting your computer.

5 - It can be widely applied to railway communication system, mobile base station, differential station, hard disk recorder, video monitoring equipment, optical terminal machine and other network transmission devices.

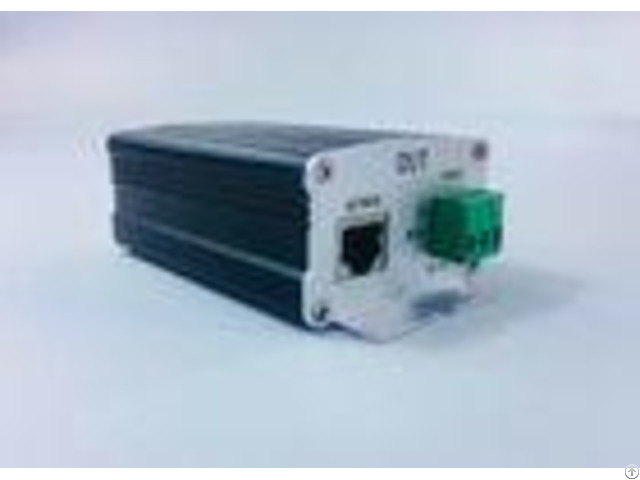

Product specification - - - - Model and specofocation | | TRSS-RJ45/4 | TRSS-RJ45/8 | Rated Operating Voltage | Un | 5V/12V | Max continuous operating voltage | Uc | 6V/15V | Voltage protective level | Up(V) | 40/60 | Max discharge current | Imax(8/20S) | 5kA | Nominal discharge current | In(8/20S) | 3kA | Response time | ns | 1 | Adaptive date transfer rate | | 100Mbps | Insertion loss | | 0.3dB | Configuration dimension | | 1042525 | Protective circuit | | 1.2.3.6 | 1.2.3.4.5.6.7.8 | Operating condition | | Temp: -40~+70 | | RH95%(25) | | Sea level elevation3km | Remarks | | Other max continuous operating voltage can be customized | - - - - Product Details TRSS-RJ45/8 type network lightning arrester is designed and manufactured according to the standard of IEC and GB, and meets the requirements of IEEE802.3AT.

It is suitable for the power supply of the communication equipment such as the server of the POE network wire, the wireless AP, the network camera, the network switch and so on.

The integrated integrated design and easy installation are convenient.

Use of attention 1 - Lightning protection device IN as input and OUT as output, the input end is connected with the outside, and the output end of the input end of the connecting device is protected.

2 - The PE line of the lightning protector must be connected with the ground wire of the lightning protection system, and the connection line is short, thick and straight.

3 - The lightning protector should be regularly tested during its operation.

If there is any fault, it should be maintained or replaced in time to ensure the safety of the equipment.

Company profile Thor is all about protecting against the damaging effects of power transients.

It is our goal and mission to connect our customer challenges with high-quality, right-priced solutions and products completed by unrivaled customer service and technical support.

Thor is following the international quality system standards, is ISO 9001 certified and our technical standards are in line with GB18802.1-2011/IEC61643-1 .
