Lightweight Ethernet Surge Protection Devices Rj45 Lightning Arrester For Network Equipment - China

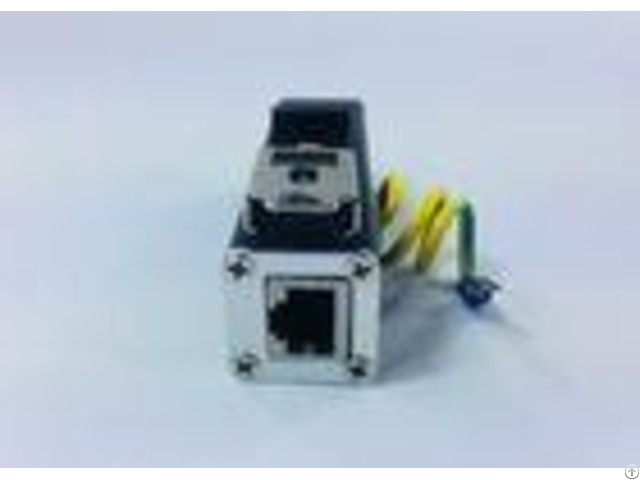

Lightweight network surge protectors protect network equipment from surge damage Model: Trss-rj11 / 45 colour: white Authentication: CE ECM Product Details The TRSS-RJ45/8 type network lightning arrester is an overvoltage protector designed for ETHERNET network.

It can be used for servers, workstations, HUB and other RJ45 interfaces.

For example, the input / output terminal of EPRJ45-5/100M is RJ45 interface, and its transmission signal rate can reach 100Mbps or 1000Mbps.

It is mainly used for lightning protection measures against network system.

To prevent high voltage from causing short circuit and combustion and explosion is the important manifestation of internal lightning protection.

Product features 1 - installation and use of convenient novice can also be easy to install 2 - PCB is designed with microstrip, good isolation, low line disturbance 3 - extremely low online resistances reduce unnecessary attenuation of signal intensity and increase the distance of signal transmission to the maximum.

4 - the product has many interfaces and is easy to use.

It doesn't need to worry about the number of interfaces.

Product specification - - - - Model and specofocation | | TRSS-RJ45/4 | TRSS-RJ45/8 | Rated Operating Voltage | Un | 5V/12V | Max continuous operating voltage | Uc | 6V/15V | Voltage protective level | Up(V) | 40/60 | Max discharge current | Imax(8/20S) | 5kA | Nominal discharge current | In(8/20S) | 3kA | Response time | ns | 1 | Adaptive date transfer rate | | 100Mbps | Insertion loss | | 0.3dB | Configuration dimension | | 1042525 | Protective circuit | | 1.2.3.6 | 1.2.3.4.5.6.7.8 | Operating condition | | Temp: -40~+70 | | RH95%(25) | | Sea level elevation3km | Remarks | | Other max continuous operating voltage can be customized | - - - - Working principle of product The working principle of network lightning arrester is to present high resistance open state with a low voltage, low resistance short circuit state at high pressure, and a combination of over voltage protection electronic devices which can withstand hundreds of amperes and large current in parallel on power supply line and signal transmission line.

When encountering lightning and high voltage and high current, it will appear short circuit immediately, and at the same time, the total power switch will be disconnected, so that the computer equipment will be protected.

Use of attention 1 - grounding lines should be short, thick and straight, so as to reduce the influence of distributed inductors on the ability of lightning electromagnetic pulse.

2 - the grounding of the signal protector should be connected to the grounding grid through the electronic switch.

3 - connect the grounding wire of the lightning protector with the ground wire of the lightning protection system.

4 - this product needs no special maintenance.

The lightning arrester should be checked regularly, especially in the thunderstorm season and the whole thunderstorm period.

When the system fails to doubt the lightning arrester, the lightning arrester can be dismantled and rechecked.

If the system is restored to normal after the restoration to the state before use, it indicates that the lightning arrester has been damaged and must be replaced immediately.

Company profile Incorporated in 2006, Zhejiang Thor Electric Co., Ltd has built everything to offer a wide range of innovative and reliable surge protection solutions and products.

been designing new products to meet the RoHS directive since 2006 - Thors ongoing commitment to RoHS compliance includes continuing efforts to reduce the presence of hazardous substances in the design and manufacture of a growing number of popular products.

Product packaging: Carton packing Transportation method 1 - Express company: FEDEX, UPS, DHL, TNT 2 - Trains, ships, aircraft transport
