M110e Remote Io Module With 4di 4do 1rs485 For Controlling Digital Consumer Devices - China

price: 139.00 Dollar US$

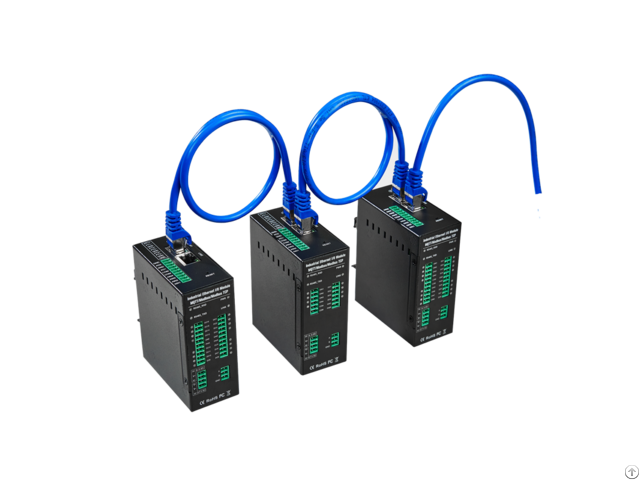

M110e Remote Io Module With 4di 4do 1rs485 For Controlling Digital Consumer Devices

Products Photos Catalog M110e Remote Module Photos Catalog

M Series Modbus Remote I/O Module Table

Model Descriptions DC Output DC Input Classic Power Consumption

M100 1 RS485, 2 DI, 2 AI, 2 DO(Sink) or Relay 1 DC 12~36VDC 0.84W-1.32W

M110 1 RS485, 4 DI, 4 DO(Sink) or Relay 1 DC M120 1 RS485, 4 DI, 4 AI, 2AO, 4 DO(Sink) or Relay 1 DC 0.84W-1.32W

M130 1 RS485, 8 DI, 4 DO(Sink) or Relay 1 DC 12~36VDC 0.64W-1.84W

M140 1 RS485, 8 DI, 8 DO(Sink) or Relay 1 DC M150 1 RS485, 8 DI, 4 AI, 4 DO(Sink) or Relay 1 DC M160 1 RS485, 8 DI, 8 AI, 8 DO(Sink) or Relay 1 DC M200 1 RS485, 2AO 1 DC 12~36VDC 0.84W-1.32W

M210 1 RS485, 4 DI 1 DC 0.84W-1.32W

M220 1 RS485, 4 DO(Sink) or Relay 1 DC M230 1 RS485, 4 AI 1 DC M240 1 RS485, 4 RTD, 2/3 wire PT100/pt1000 --- 0.6W-0.84W

M310 1 RS485, 8 DI 1 DC 12~36VDC 0.64W-1.84W

M320 1 RS485, 8 DO(Sink) or Relay 1 DC M330 1 RS485, 8 AI 1 DC M340 1 RS485, 8 RTD, 2/3 wire PT100/pt1000 、 12~36VDC 0.6W-0.84W

M410 1 RS485, 16 DI 1 DC 0.74W-0.96W

M420 1 RS485, 16 DO(Sink) or Relay 、 0.6W-0.85W The M Series Modbus Remote I/O Module is an industrial class, isolated designed, high reliability, high stability and high precision data acquisition module, embedded 32-Bit High Performance Microprocessor MCU, provides a RS485 interface.

It provides multi I/O, supports standard Modbus RTU, can be intergraded into SCADA, OPC server, HMI and other automation systems.

It is design for working in the harsh industrial application environment, widely used in a variety of industrial automation, security monitoring system, automatically measurement and control system.

The M Series Modbus Remote I/O module provides different I/O ports for variety applications.

Includes optical-isolated digital inputs, compatibles dry contact and wet contact, supports max 10MHz high speed pulse counter, the DIN1 can be used for encode, digital outputs supports 10Hz~300Khz high speed pulse output or relay outputs, the DO1 supports PWM high-speed pulse output, the output duty cycle from 10-90%; DO2 can be used to control the direction of the stepper motor, isolated 12bits analog inputs, supports 0~5V, 0~10V, 4~20mA, 0~20mA analog signal, 12bits analog outputs, supports 0~10VDC signal output, resistance thermal detector inputs compatibles 2/3 wires PT100 and PT1000 - All of the I/O ports are high sampling frequency and special filtering strategy to ensure its reliability.

The M Series Modbus Remote I/O module can work at wide working voltage range, the range is 12 ~ 36VDC with anti-reverse protection design.

Also, it provides 1channel 12~36VDC power output for external device to save wiring cost.


Company Contact:


  • Phone: 075529451836

  • Address: 2F, A2 Building, Fuhai Information Port, Xinhe Community, Fuhai Street, Baoan, Shenzhen, China, Shenzhen , Guangdong , China

  • Email: Email


Published date: September 10, 2024

  • Business Description: Founded in 2005, Beilai Technology is an innovative manufacturer dedicated to the development and manufacturing of Industrial IoT, Industrial Edge Computing, Industrial Automation Data Acquisition and Communication devices.

    Beilai is the pinyin of barium-rhenium in Mandarin.

    Barium is a lively element, and rhenium is the last element discovered by human beings.

    The meaning of barium-rhenium is to be brave in innovation and explore the most cutting-edge technology.
