Micro Channel Plate Mcp - China

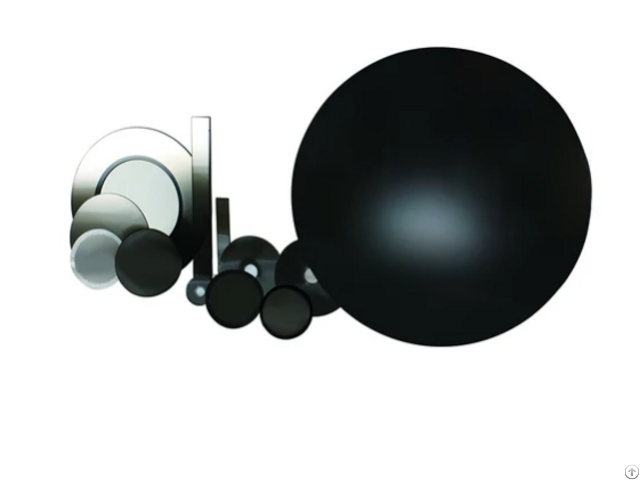

Micro-channel plate (MCP) is an electronic Amplifier device, is the important component of wafer focusing image intensifiers.

MCP is made of glass fiber with final shape of very thin glass plate composed of many small channels, i.e. Except channel type amplifier with fast response and resolution in two-dimensional space, MCP can also directly detect various particle or ion, and a variety of high-energy radiation.

Therefore, MCP is capable for all associated with these substances detection apparatus, imaging instrument or device.

Except the standard 16mm, 18mm and 25mm MCP for image intensifiers, we are also in a position to supply wide range of MCP from 5µm～50µm in pore size and 0°～19°in bias angles with shapes of round, square and rectangular.

Our products are conformed to international, as well as American Military Standards.

Its products, especially the MCP of small pore size, low noise, high output, long liability and imaging quality are supplied in batch to customers home and abroad.

Features: Pore size：5～50 μm

Open ration：≥60％

Electrode material：Ni-Cr

Depth of electrode：

Input plane：≤0.8d (d : pore size)

Output plane：2～3d (d: pore size)

Bake out temperature：≤400℃

High output current, wide dynamic range, high gain, low noise, long life time

With or without solid glass border eature

Lightweight, small size

Good resolution, high gain, Low noise Applications: Photomultiplier, Image intensifier

X-ray image intensifier

High speed oscilloscopes

Photon account and directly detect soft X-rays

UV photons, electrons, ions, charged particles

Subatomic particles
