One Channel Passive Video Balun With Ce Approval Vb102ph - China

price: contact company for price

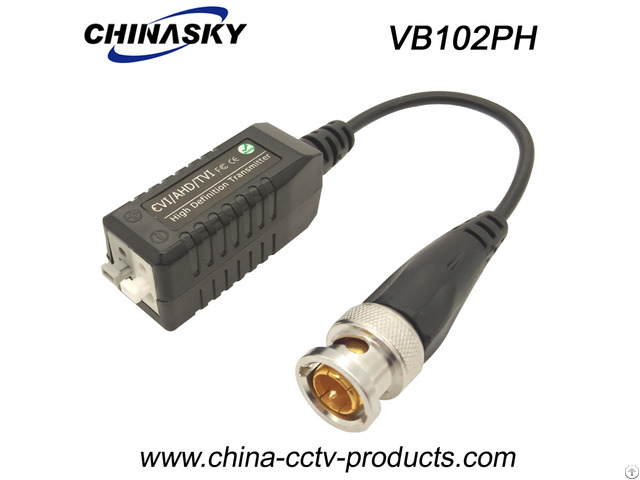

One Channel Passive Video Balun With Ce Approval Vb102ph

Products Photos Catalog Channel Passive Video Photos Catalog

Features

Built-in transient suppression protection

Compatible with all HD-CVI, HD-TVI, HD-AHD Cameras and analog cameras

Up to 320m for 720P AHD camera

Up to 450m for 720P CVI Cameras

Up to 250m for 1080P CVI Cameras

Up to 250m for 720P/1080P TVI Cameras

NTSC, PAL, and SECAM video formats

No power required

60dB cross talk and noise immunity.

Compact size and easy installation

Technical specifications:

One Channel Passive Video Balun with CE Approval (VB102PH)

Video Format HD-CVI/TVI/AHD, NTSC, PAL, and SECAM

Frequency Response DC to 60MHz

Attenuation 0.5dB typ

CMRR 60 dB

Surge protection 4KV

ESD 8KV

Impedance Coax, Male BNC 75 ohms

Terminal Block 100 ohms

Working environment Working Temperature -10ºC to +50ºC

Storage Temperature -30ºC to +70ºC

Humidity 0 to 95%

Wire Type UTP5

UTP Connection "Press-Fit" terminal blocks

Power No power required

Case ABS Plastic

Dimension 39mm*16mm*19mm(excluding connectors)

Weight 50g/pair
