Passive Infrared Microwave And Mcu Processor Tri Tech Detector - China

price: 5.60 Dollar US$

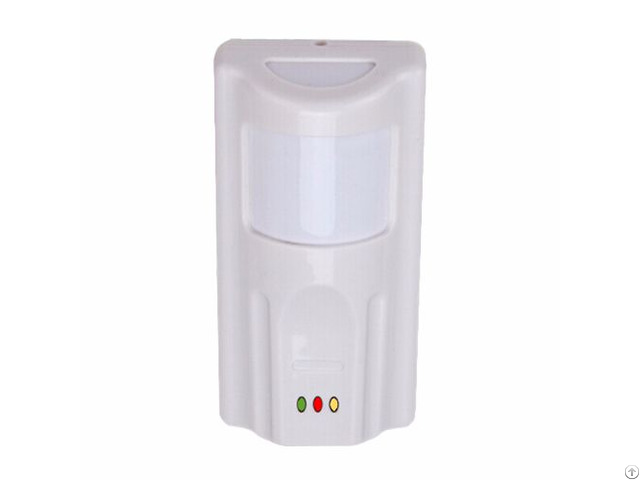

Passive Infrared Microwave And Mcu Processor Tri Tech Detector

Products Photos Catalog Passive Infrared Photos Catalog

Three-tech detector refers to the application of infrared-led, microwave-assisted, single-chip intelligent processing (PIR / MW / AI) integrated detection technology detector.

This product can be used in banks, warehouses, home and other indoor places Product Features

① Detection range: 12m.

② Doppler (effect) + energy analysis

③ microwave using X-Band planar antenna

④ automatic temperature compensation, reduce false positives

⑤ anti-white light interference technology

⑥ LED ON / OFF optional, ⑦ sensitivity adjustment has four stalls

⑧ alarm trigger mode AND / OR optional

⑨ anti-pet <35kg Technical parameters

Model No.

Operating Voltage 12VDC(9-16VDC)

Warm-up time 1 minute

Detection angle 90°

Alarm time 1s

Working current ＜50mA

Detection range Ordinary 12m, anti-pet: 10m

Mounting height The best 1.8m, 1.8 ~ 2.2m

Alarm contact NC, max100VDC/500mA

Alarm time 1 minute

Detetion method Microwave + infrared

Sensor type Dual element low noise pyroelectric infrared sensor

Microwave antenna types Planar Antenna with High Frequency GaAsFET Oscillator

Microwave frequency 10.525Ghz

LED display Green: infrared trigger, yellow: microwave trigger

Red: Alarm

Installation Wall


Company Contact:


  • Phone: +86-755-23042858

  • Address: 9F West,A1#,Zhongtai Info&Tech Industrial Park,No.2 Dezheng R.D.Shilong Community,Baoan District, Shenzhen , Guangdong , China

  • Email: Email


Published date: April 18, 2017

  • Business Description: Established in 2, 008, BTD is a leading manufacturer of home based security systems.

    We are committed to

    provide the best security solutions which is cost effective & user friendly to our customer.

    The company has a consistent record of growth & expansion through the existing satisfied client base.

    We've been working hard to give our customers the greatest home security features available, from home automation to security cameras.

    At present, our products and solutions have already been applied into dozens of countries and served millions

    population around the world.
