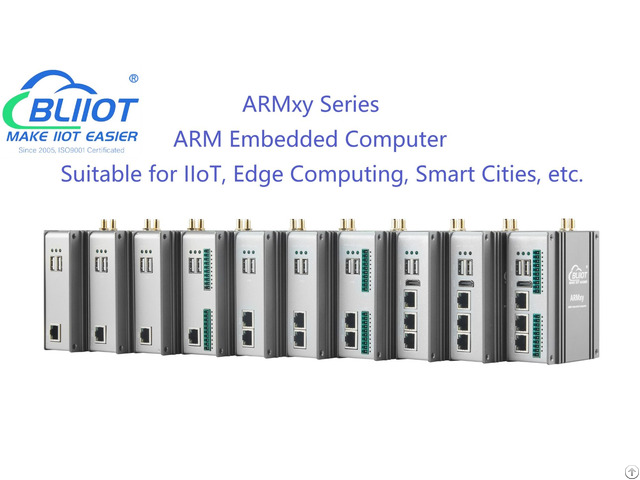

The ARMxy BL410 series is a versatile industrial ARM controller designed for flexible I/O configuration.

It is based on the RK3568J/RK3568B2 processor, featuring aquad-core ARM Cortex-A55 architecture with clock speed up to 1.8GHz/2.0GHz.

The device is equipped with 8/16/32GB eMMC storage and various combinations of 1/2/4GB LPDDR4X RAM.

Additionally, it includes a built-in 1TOPS computing power Neural Processing Unit (NPU) for supporting deep learning tasks.

The BL410 series ARM embedded computer offers a rich array of interfaces including

1 x 1000Mhz Ethernet port, 2 x optional 100Mhz Ethernet ports, 2 x USB 2.0 ports, 1 x optional HDMI 2.0a port, 1 x optional X series IO board, 2 x optional Y series IO boards.

These interfaces support various functions such as communication, PWM output, pulse counting, and data acquisition and control.

The BL410 also supports hardware decoding of 1080P@60fps videos.

Additionally, it features a built-in Mini PCIe interface to support communication modules such as Bluetooth, WiFi, and 4G modules.

The BL410 series ARM embedded computers support Linux-4.19.232, Linux-RT-4.19.232 kernels, Debian-10.13, Android 13, Docker containers, Node-RED, and Qt-5.15.2 for graphical interface development tools.

In addition, BL410 is compatible with BLIoTLink industrial protocol conversion software for data collection and transformation, and can seamlessintegration with various mainstream IoT cloud platforms and industrial SCADA software.

Users can leverage the BLRAT for remote access and maintenance of the BL410 embedded computer.

Additionally, with support for Node-Red, users can rapidly develop IoT applications on the BL410.

The BL410 series ARM embedded computer has undergone rigorous electrical performance design and high-low temperature testing to ensure stability and reliability.

It is designed for DIN35 rail mounting, making it suitable for various industrial application environments.

This embedded computer is widely used in industrial IoT, photovoltaic power generation and energy storage systems, automation control, and transportation and rail applications.

Typical application areas:

for Industrial Control for Edge Computing for Data Acquisition for Energy Storage Systems for Photovoltaic Power Generation for IoT Gateway for Rail Transportation for Smart Devices for industry 4.0 for smartcities for AGV for Edge Computing Gateway For energy IoT for watertreatment IoT for industrial iot for MES for EV charger for remote monitoring for measurement equipments for smart factory for aiot Hardware Parameters

CPU RK3568J/RK3568B2, 22nm ARM Cortex-A55 cores (64-bit) with a clock speed of 1.4GHz in normal mode and up to 1.8GHz in overdrive mode.

RK3568B2 clock speed 2.0GHz NPU: 1 TOPS

Supports INT8/INT16/FP16/BFP16

Supports TensorFlow/PyTorch/Caffe/ MXNet deep learning frameworks Encoder: Supports 4K@60fps H.

265/H.

264 video decoding Decoder: Supports 1080P@60fps H.

265/H.

264 video encoding

ROM 8/16/32GByte eMMC

RAM 1/2/4GByte LPDDR4X

ETH RJ-45, 1~3, 1x1000M, 2x100M, ESD Level 3, EFT Level 3

USB 2x USB2.0 HOST(USB1, USB2), supports high-speed 480Mbps, ESD Level 3

HDMI 1x HDMI2.0a, support 1080P@120fps, 4K@60fps

IO Slot X series IO board slot: 1, X series IO board, support RS485, CAN, RS232, RS422, DI, DO, GPIO, etc;

Y series IO board slot: 2, Y series IO board, support RS485, CAN, RS232, RS422, DI, DO, Relay output, AI, AO, PT100, PT1000, TC, etc.

LED 1x power indicator light 2x user-programmable indicator light

Mini PCIE 1, Supports Bluetooth, WiFi, 4G module, etc.

SIM Slot 1 slot, NANO

Antenna 2, For 4G/WIFI/GPS

Debug 1x Micro USB debug port

SD Slot 1

Reset 1 reset button

Watchdog Onboard independent hardware watchdog

Power Rated DC 24V, supports wide voltage range of 9-36VDC

Equipped with reverse polarity protection and overcurrent protection

3-pin terminal block with screw terminals

Grounding 1-pin GND terminal

Installation DIN35 rail mounting, wall mounting

Material Aluminum alloy casing + stainless steel

Dimension 110*83*42mm or 110*83*48mm
