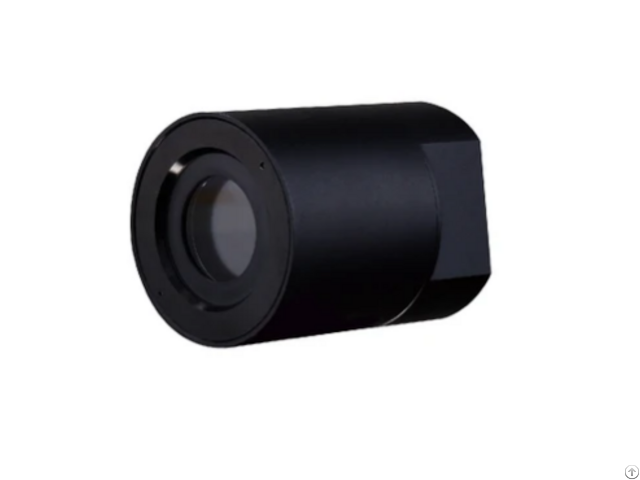

Solar Blind Uv Iccd - China

The solar blind UV image intensifier and the CCD are directly coupled through the optical fiber panel and the light cone, which can realize the output of electrical signals for digital processing and recording.

Application Fields:

UV warning, missile tracking, corona detection, fingerprinting for criminal investigation and forest fire prevention.

Technical Features: The CCD is directly coupled to the image intensifier optical fiber panel through a light cone.

Specifications: Adapter image intensifier: 18mm Solar blind UV image intensifier Effective pixels: 752×582 Output image format: PAL/NTSC Frame frequency: 25/30 fps Resolution: 12(min) lp/mm Working temperature: -20～+50 ℃ Input power: 12 Vdc Gain adjustment: 0～5 Vdc Dark count: 10 CPS
