Telephone Signal Ethernet Surge Protection Devices Rj11 110v 5ka Low Online Resistances - China

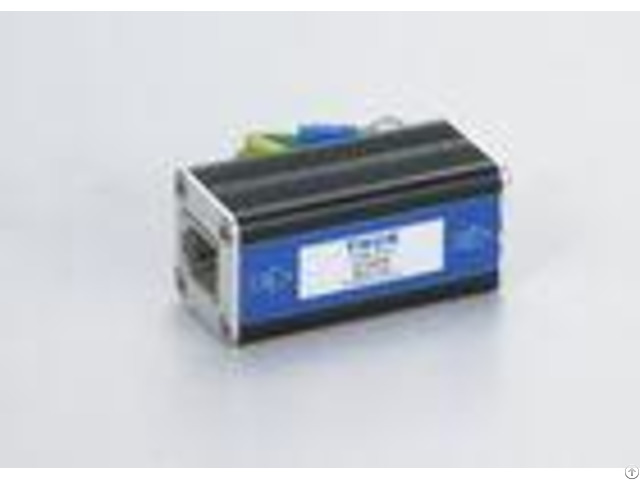

Rj11 Ethernet Surge Protection Devices Telephone Signal Surge Protector Model: TRSS-RJ11 / 45 Color: white Authentication: CE ECM Product introduction The TRSS-RJ45/8 type network lightning arrester is a lightning protection measure taken by Zhejiang tohr Electric Co., Ltd. to independently develop and manufacture the network system.

The lightning arrester is designed and manufactured according to the standard of IEC and GB, and meets the requirements of IEEE802.3AT.

It is suitable for the power supply of the server, wireless AP, network camera, network switch and other communication equipment, such as the power supply of the POE network wire, the surge protection of the network signal line, the integrated integrated design, and the installation convenient for the multichannel network signal.

Line centralized protection is mainly used for lightning protection (including overvoltages), such as 8, 16 and 24 Ethernet switches.

Product features 1 - the speed of response is 0.001 seconds, and the voltage is controlled in the range that the equipment can withstand.

2 - limit the precision of the voltage to say how much! 3 - PCB is designed with microstrip, good isolation, low line disturbance 4 - extremely low online resistances reduce unnecessary attenuation of signal intensity and increase the distance of signal transmission to the maximum.

Product specification 1 - Rated Operating Voltage(UN): 110V 2 - Max continuous operating voltage(UC): 150V 3 - Voltage protective level(UP): <500V 4 - Max discharge current(IMAX): 5KA 5 - Nominal discharge current(IN): 3KA 6 - Response time(NS): 1 7 - Adaptive date transfer rate: 2Mbps 8 - Insertion loss: 0.5dB 9 - Configuration dimension: 522525 Working principle of product The working principle of network lightning arrester is to present high resistance open state with a low voltage, low resistance short circuit state at high pressure, and a combination of over voltage protection electronic devices which can withstand hundreds of amperes and large current in parallel on power supply line and signal transmission line.

When encountering lightning and high voltage and high current, it will appear short circuit immediately, and at the same time, the total power switch will be disconnected, so that the computer equipment will be protected.

Use of attention 1 - when installing, attention should be paid to cables coming in and out of surge protective devices, so as to avoid the two coupling of surge.

2 - please recognize the interface and the way of connection.

3 - the grounding of the signal protector should be connected to the grounding grid through the electronic switch.

4 - lightning protector is between the protected device and the signal channel.

Company profile Thor is all about protecting against the damaging effects of power transients.

It is our goal and mission to connect our customer challenges with high-quality, right-priced solutions and products completed by unrivaled customer service and technical support.
