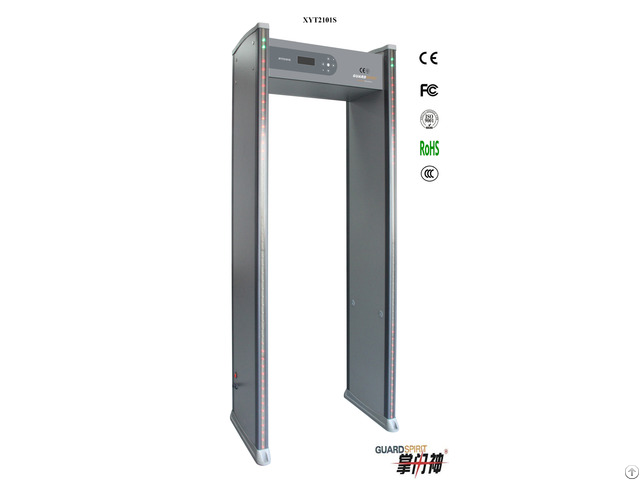

Walk Through Metal Detector Door Frame Model Xyt2101s - China

Technical parameter

Electric current: AC85V~264V/50-60HZ

Power: <20W, low consume, low radiation

Net weight: 70KG

Workplace environment: -20℃~+45℃

Standard: GB15210-2003, CE

Standard External size: 2230mm(H)X835mm(W)X580mm( D)

Standard Internal size: 1990mm(H)X700mm(W)X500mm( D)

Characteristic & Function

- LCD screen with Infrared remoter controller,

both Chinese & English program, easy to operate.

- Adopt advanced digital signal processing control replaced

traditional analog signal control, better stability.

- Program Self-diagnostic when power on, automatically checking left and right door panel, LED light and choose the best working frequency.

- Detecting Zones: 16 detecting zones.

Separate left and right side detection.

Simultaneous alarm from multi- zones;

- Sensitivity adjustable: Each zone has 255 degree sensitivity level, three patterns: High, middle, Low for different requirements.

Preset the metal size, weight, volume, location to exclude the coin, key, belt.

- Sound Alarm: 1-25s alarm time, 255 different sound volume for choose

- LED light alarm: LED bar graph on left and right door frame, visible alarm simultaneously to ascertain the layout of metal articles

- Password protection, only the authorized person can operate.

- Anti-interference function, using advanced interactive transmitting and receiving to avoid interference, frequency range from 4K-8K to avoid frequency interference

- 6 preset programs for security application versatility

- Automatically count passengers and alarm times

- Microprocessor control on top unit, anti-interference and self-diagnose transmission channel to avoid internal and external interference.

- Easy assembly: designed with only 2 pieces cables and 8 screws, Simply-to-follow instruction.

- Harmless to human body: is harmless with heart peacemaker, pregnant women, magnetic floppy, recording tapes, etc.
