X Ray Baggage Scanner Xj5030 - China

price: 8000.00 Dollar US$

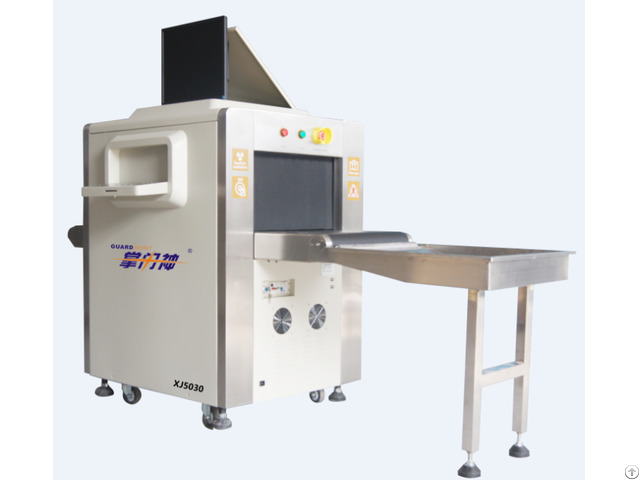

X Ray Baggage Scanner Xj5030

Products Photos Catalog Ray Baggage Scanner Photos Catalog

General Specifications

Tunnel Size : 500（W）×300（H）mm

Conveyor Speed: 0.22m/s

Conveyor Max Load: 150 kg

Single inspection dosage: < 1.32μGy

Wire Resolution: 0.0787mm metal line

Steel Penetration: 12MM

Film Safety: For ISO 1600

X-RAY GENERATOR

Orientation： Upward

Tube Current：0.4~0.7MA（adj ustable）

Anode Voltage：80KV（adjustab le）

Angle：60°

Generator cooling/working periods：

Sealed oil bath with forced air/100％

OPERATING ENVIRONMENT

Storage Temperature: -20oC to 60oC

Operating Temperature：0oC to 45oC

Relative Humidity：

20 to 95% non-condensing

System Power：220 VAC (±10%) 50±3HZ

Power wastage：1.0 KW (Max)

Noise<65DB

X-RAY Sensor:

L-shaped array detector

24bit

Single energy


Company Contact:


  • Phone: 0755 89552543

  • Address: 5F,3 Building,Xiaxue Industrial Park,Xuexiang Community,Bantian Street,Longgang District, Shenzhen , Guangdong , China

  • Email: Email


Published date: May 23, 2016

  • Business Description: Shenzhen Xinyuantong Electronics Co., Ltd. and Shenzhen GUARDSPIRIT Metal Detector R&D Center professionally develop, produce, sell, manage and service“GUARDSPIRIT” security products and its facilities.

    It is a high-end new technology enterprise.

    Shenzhen Xinyuantong Electronics Co., Ltd. was founded in July, 2000 - The Registered brand “GUARDSPIRIT” has been well accepted in the market and the results have been tremendous.

    Due to the incessant efforts on research and development for 6 continuous years, we have been able to develop 21 different variants of metal detectors and 5 model x-ray baggage inspection machine.

    They are now on sale throughout the country, and the demand for exports has also gone up significantly year on year.

    Shenzhen Xinyuantong Electronics Co., Ltd has achieved the status of the leader in Security Equipment in China, and is clearly established as the Number One in the Walk-through Metal Detector and X ray bagagge scanner segment.
