X Ray Baggage Scanner Xj5335 - China

price: 12000.00 Dollar US$

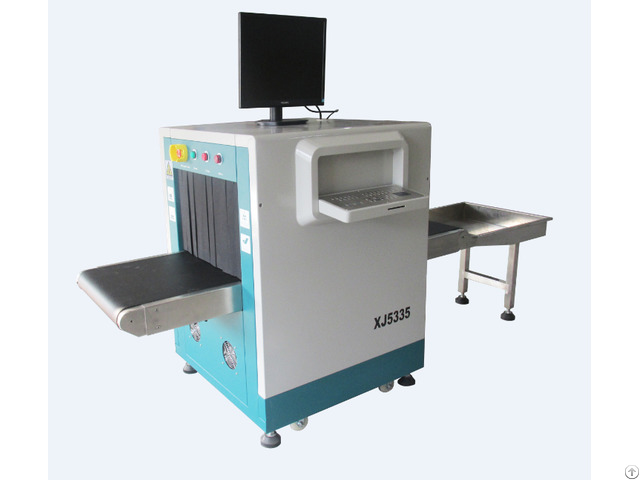

X Ray Baggage Scanner Xj5335

Products Photos Catalog Ray Baggage Scanner Photos Catalog

Features:

*High resolution images *Simple User-friendly operation

*Strong image storage capacity

*Automatic Self-diagnostic maintenance system

*One Key shutdown control

Parameter:

*Tunnel Size…………….

530m m(W)*350mm(H)

*Load Weight……50Kgs

*Conveyor Speed……….

0.2-0.23m/ s

*Radiation Leakage…….

0.10 μG/h

*Penetration……… ….

43mm steel

*X-ray resolution……….

40 AWG

X-Ray Generator:

*X-ray Beam Direction……From bottom

*Beam Divergence……….

80°

*Tube Voltage…………….

80-160Kv

*Electronic Current…………0.2-1 - 25mA

*Cooling………… ………Sealed oil cooling + 100% Dutycycle

Image Function:

*X-ray Converter Arrangement….

…Dual Energy L-shaped photodiode array detector

*Inorganic/Organic Stripping…… ….

Organic substances display in Orange, Inorganic

substances display in blue, mixtures display in green

*Maximum Image Resolution………1024*7 68

*Image Storage……………… ……100, 000pcs

*Image Display Color……………….

B lack /White & Color

*Grey Level……………… ………65536

*Zone & Zoom………………… .

.

32 times zooming

*Other Function…………… ……Alarm, Review, Density Enhancement, Negative/positive image,

Light/Dark Enhancement, automatic count, One Key Power Off, Working status display, Date & time display, Rush Stop Protection,

Dangerous Alarm, System Failure Alarm etc…

Working Environment:

*Work Temperature & Humidity….

…0℃～+45℃/ 20%～95%(Non Cooling),

-10℃～+45℃/ 5%～95%(Optional)

*Storage Temperature & Humidity….

-40℃～70℃/ 5%～95%(Non Cooling)

*Power…………… ………………….

2 20VAC(+10%～-15%, , 50Hz±3Hz)


Company Contact:


  • Phone: 0755 89552543

  • Address: 5F,3 Building,Xiaxue Industrial Park,Xuexiang Community,Bantian Street,Longgang District, Shenzhen , Guangdong , China

  • Email: Email


Published date: May 23, 2016

  • Business Description: Shenzhen Xinyuantong Electronics Co., Ltd. and Shenzhen GUARDSPIRIT Metal Detector R&D Center professionally develop, produce, sell, manage and service“GUARDSPIRIT” security products and its facilities.

    It is a high-end new technology enterprise.

    Shenzhen Xinyuantong Electronics Co., Ltd. was founded in July, 2000 - The Registered brand “GUARDSPIRIT” has been well accepted in the market and the results have been tremendous.

    Due to the incessant efforts on research and development for 6 continuous years, we have been able to develop 21 different variants of metal detectors and 5 model x-ray baggage inspection machine.

    They are now on sale throughout the country, and the demand for exports has also gone up significantly year on year.

    Shenzhen Xinyuantong Electronics Co., Ltd has achieved the status of the leader in Security Equipment in China, and is clearly established as the Number One in the Walk-through Metal Detector and X ray bagagge scanner segment.
