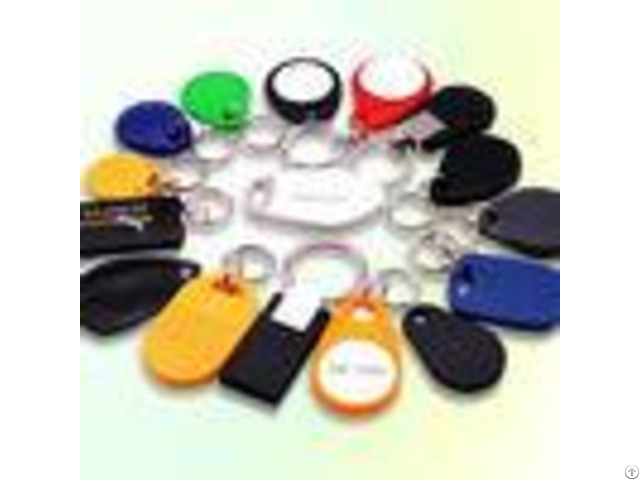

Mf1k Chip Rfid Id Card Keychain 13 56 Mhz 5 8 Gms With Uid Number Printing - China

ABS ISO14443 13.56MHz MF1K Chip RFID Keyfobs with UID number print A RFID tag, Key FOB or Smart Card typically stores a static number (or ID) and an antenna that enables the chip to transmit the stored number to an RFID Reader.

When the RFID Chip that is embedded within each of the above products, comes within range of an appropriate RFID Reader, it is then powered by the electromagnetic energy transmitted from it.

This type of Chip is called Passive, but there is another type also, that carries it's own power supply, this type is called Active.

- - - - Electrical Characteristics | | Operating Frequency | 125 KHz ; 13.56 MHz | Reading Distance | Depends on the Reader | Available Chip Type | HITAG 1; HITAG 2; HITAG S; MIFARE Classic IK; MIFARE Classic 4K; I-CODE (Read & Write); Ti 256, INSIDE 2K ; TK 4100 | Memory Size | 204 bits / 96 bits | | | Physical Charateristics | | Material | ABS&PC; Leather | Dimension | 46 (L) mm X 36 (W) mm (Other Shape & Size on request).

| Weight | 5.8 gms | Color | Black; Sky Blue; Red | | | Temperature | 20 C to +85 C | | | Printing Options | Logo printing using laser engraving.

| | Logo printing using screen printing one colour.

| | Serial number printing using laser engraving.

| | | Data Maintenance | 10years, EMS memory can be wiped or written over 100K times | | | Area of Application | Access Control, Parking, Staff identification, Property tracking.

| - - - -
