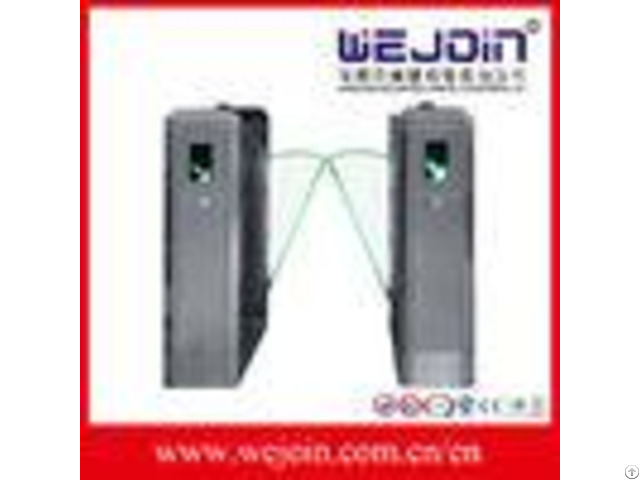

110v 220v Stainless Steel Flap Barrier Gate With Anti Tailing Function For Metro Stations - China

Half Height Safety Barrier Gate Controlled Access Flap Turnstiles Quick Detail: # # Name : Flap barrier gate # Application: Enterprise door # Certificate: CE, RoHS, FCC # Color: Transparent, red, yellow, green, blue.

Pink, purple # Feature: Adjustable access direction # Battery capacity: 300-500 Puffs Description: 1 - Intelligent flap barrier is a brand-new product of WEJOIN company.

2 - WEJOIN flap barrier has features of precise craftsmanship, comprehensive functions and high technology.

It has application in high class communities, intelligent buildings, hotels, subway stations and other high level venues.

3 - Flap barrier, as the upgraded version of the tripod turnstile and swing barrier, is a hi-tech product for pedestrian access control.

4 - Choosing different identification equipment and applying reliable security protection devices, alarm devices, direction indicator to realize the intelligent management of access control is comply with the fire safety requirements.

5 - Flap barrier is the combination of machinery, electronic, CPU control and variety of personal authentication identification technology.

IC card, ID card, code bar, and fingerprint identification unit are compatible with the flap barrier.

6 - Flap barrier motor can be classified into single motor and double motors.

The single one is used for single lane and the double one is used for multi-lanes.

Applications: High class communities, intelligent buildings, hotels, subway stations and other high level ve Functions and Features 1 - Flap work synchronously.

2 - Malfunction self-detection.

Which is easy for operation and maintenance.

3 - Operational mode can be set up through the built-in menu on the control board.

4 - Flap auto reversing when meeting exterior force.

5 - Audible and visual alarm in case of unauthorized access.

6 - Auti-collision function, the flap will stay close if not receiving the open signal.

7 - The design is of integration of machinery and electronic structure, with special drive style and reliable machinery auto locking solution, precise worm gear, and cabinet composite structure 8 - Auto reset function, after the flap open if no pedestrian passes in a fixed time, the system will cancel the order and the auto-reset time is adjustable.

9 - Flaps open when power off, and auto-close when power on.

10 - Compatible with diverse access control devices.

11 - Pedestrian flow directions can be single or double directions.

12 - Available for two-way traffic lights, which can prompt the state---pass or no-entry.

13 - RS232 and LAN sockets are available to connect the computer.

Specifications - - - -

Model | WJTY201 | Cabinet dimension | 1400mm(L)270mm(W)1000mm(H ) | Stretching-out flap length | 275mm | The max lane width | 900mm | Cabinet material | 304 stainless steel | Power supply | AC220V15%, AC110V15% | Motor voltage | DC12V (brush motor) | Access device input voltage | dry contact or 12V electrical level signal or 100ms 12V impulse signal or driving current 10mA | Max flow rate | 30~40 people per minute | Flap opening/closing time | 1sec | reset time when power on | 3 sec | protection grade | IP32 | working environment | outdoors (with shelter) and indoors.

| working temperature | -10C~50C | - - - -
