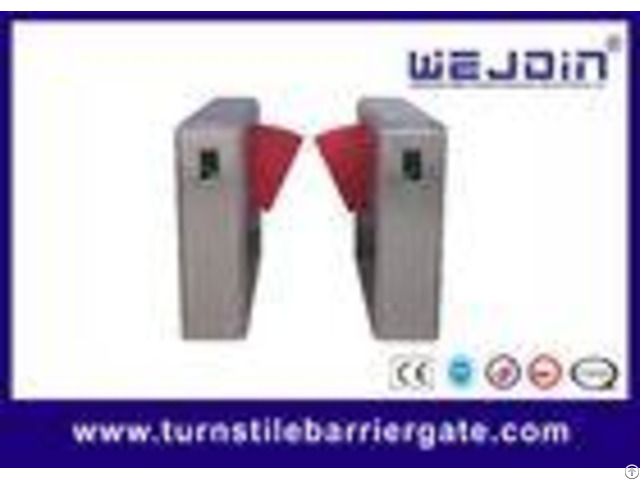

900mm Width Electronic Flap Barrier Gate Pedestrian Automatic Systems Turnstiles - China

Waist High Speed Gate Systems Retractable Flap Barrier Turnstile For Bus Station Functions and Features: # The design is of integration of machinery and electronic structure, with special drive style and reliable machinery auto locking solution, precise worm gear, and cabinet composite structure.

# Malfunction self-detection.

Which is easy for operation and maintenance.

# Flap work synchronously.

# Flap auto reversing when meeting exterior force.

# Audible and visual alarm in case of unauthorized access.

# Auti-reverse passing # Operational mode can be set up through the built-in menu on the control board.

# Auto reset function, after the flap open if no pedestrian passes in a fixed time, the system will cancel the order and the auto-reset time is adjustable.

# Flaps open when power off, and auto-close when power on.

# Compatible with diverse access control devices.

# Pedestrian flow directions can be single or double directions.

# Available for two-way traffic lights, which can prompt the state---pass or no-entry.

# RS232 and LAN sockets are available to connect the computer.

2 - Main Technical Specifications: 1)Material: SS304, thickness is no less than 1.5mm 2)Motor Material: steel and aluminum alloy 3)Gate Opening and Closing time: 1S 4)Passing Speed: 30~40persons/min 5)Power: AC220C10V, AC110C10V 6)Motor: DC Brushless Motor, 24V 7) Input Connection: +12V Level Signal or Pulse Wide>100ms DC12V pulse, Current>10Ma 8) Infrared Sensors: 8 Pairs 9) Relative Humidity: <95%, No Densation 10) Operating Temperature: -25C-50C 11) Working environment: indoor and outdoor(added the rain-shed) 12) Protection Grade: IP32 Applications: High class communities, intelligent buildings, hotels, subway stations and other high level venues.
