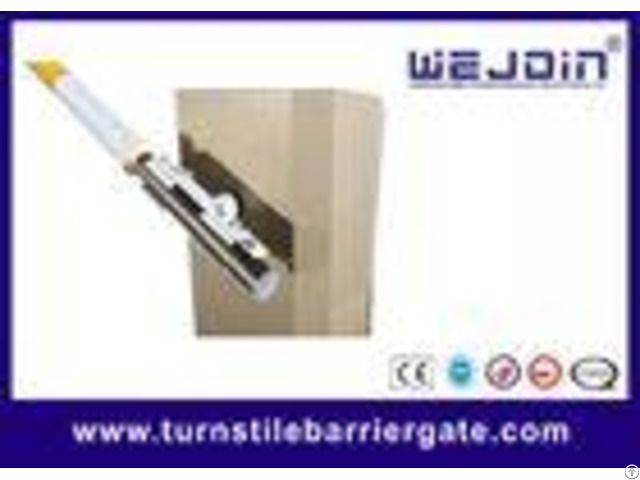

Car Variable Frequency Electronic Boom Barrier For Toll Applications Parking System - China

Car Variable Frequency Electronic Boom Barrier For Toll Applications Parking System Quick Detail: - - - - Name | Variable Frequency Barrier Gate | Application | Parking System | Speed | 0.6S second | Feature | Manual release | Rated Power | 120W | Certificate | CE, ISO, | Net Weight | 50KG | Voltage | AC220V, AC110V | - - - - Functions & Features: 1 - Cabinet can be customized.

2 - Round arm and octagonal arm are optional.

3 - AC based motor is stronger and maintenance free, with electromagnet brake.

4 - Manual realease when power off.

5 - Reversing on obstacle.

6 - Support infrared photocell and loop detector for security 7 - Connect with computer by RS485 - 8 - Covenient clutch device and manual hand wheel, user-friendly for power off.

9 - Digital limit for limit adjustment-free.

10 - Swing-away flange in the case of a collsion with avehicle, the barrier arm is released and can be manually re-engaged afterwards.

11 - Toll barrier from WEJOIN is the proper solution for toll applications thanks to their fast speed, reliability and low operation costs.

Specifications - - - - Model | WJDZ104 | Working Temperature | -35+85 | Voltage | 220V10%, 110V10%, 50/60HZ | Rated power | 300W | Relative humidity | 90% | Remote control distance | 30m | Net weight | 65kgs | Speed | 0.6S | Max boom length | 2.5 meters | - - - - Communication with customers Q: What's WEJOIN monthly production capacity for barrier gate? A: 3000 units.

Q: As for the over-heating problem of barrier gate A: WEJOIN barrier gate has motor cooling fan which can solve the problem of over heating-protection.

WJDZ601 and WJDZ701 don't have motor cooling fan, but the aluminum alloy housing of WJDZ601 can make the heat radiate quickly, and therere shutters on the housing to let wind in.

Q: Sometimes, Why the barrier boom would open automatically? A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch.

Please refer to last page of Barrier Gate Manual.

Or you can adjust the adjusting screw.

And the last step is to check the intensity of the spring.

Q: Whats the remote control distance? A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away.

WEJOIN recommends using the remote control within 30 meters or 50 meters.

Mechanism core:

Company Contact:

• Posted By: Shenzhen Wejoin Mechanical Electrical Co.limited

• Phone: 86-755-89924615

• Address: Wejoin Technology Park, No 3 BYD Rd, Shijing, Pingshan, Shenzhen City, RPC.518118, Shenzhen , Guangdong , China

• Email:

• Website: https://www.turnstilebarriergate.com

• Business Description: Shenzhen Wejoin Mechanical Electrical Co.

  ltd was founded in 2004 - It is the first national high- tech enterprise specialized in research and development, manufacturing and sales of intelligent access control products in China.
