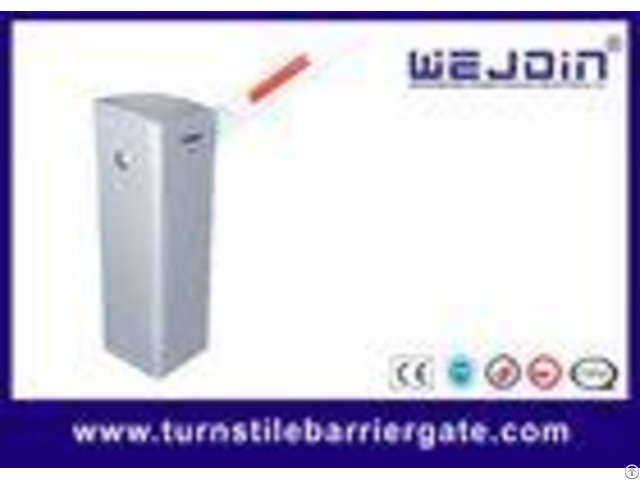

Dual Speed And Bi Direction Barrier Gate For New Product - China

Vehicle, Car Automatic Parking Barrier Access Control Quick Detail: - - - - Name | Bi-directional Barrier Gate | Application | Parking System | Speed | 1.5/3S or 3/6S second | Feature | Manual release | Rated Power | 120W | Certificate | CE, ISO, | Net Weight | 50KG | Voltage | AC220V, AC110V | - - - - Functions & Features: 1 - Open the barrier gate by motor wheel when power off and automatic locking when power on 2 - Balanced boom running with a motor transmission of cranks and shafts 3 - Remote control to operate the barrier gate 4 - Auto-reverse when the boom meets obstruction 5 - Infrared photocells interface is available 6 - Loop detector interface is available 7 - Well-integrated with car parking system equipments, with wire control (push button) 8 - Interface for traffic light 9 - Offering dry contact signal for car parking system (COM, NC, NO) 10 - Auto-delay when closing (adjustable) 11 - Remote control frequency: 418MHz 12 - Boom with protective rubber band Specifications - - - - Model | WJDZ830 | Working Temperature | -40+75 | Voltage | 220V10%, 110V10%, 50/60HZ | Rated power | 80W | Relative humidity | 90% | Remote control distance | 30m | Net weight | 50kgs | Speed | 1.5S/3S, or 3S/6S | Max boom length | 6 meters | - - - - Why to choose WEJOIN Barrier Gate with rubber on boom? 1 - Barrier Gate with rubber on boom adopts the latest mold casting design, without clutch device.

Its machine core adopts connecting rod structure mainly comprised with worm wheel, worm and crank arm.

The barrier gate runs stably, and is conveniently maintained.

2 - Barrier Gate with rubber boom uses the third generation motor.

It is stable and has long service life performance, running one million times.

Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.

3 - The barrier core is special and main parts are aluminum alloy casting.

The barrier gate will automatically reverse when the boom meets the obstruction.

The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles.

4 - WEJOIN has sub-companies to produce and process almost accessories.

Besides standard producing, we offer OEM service in the meanwhile.

Communication with customers Q: What's WEJOIN monthly production capacity for barrier gate? A: 3000 units.

Q: As for the over-heating problem of barrier gate A: WEJOIN barrier gate has motor cooling fan which can solve the problem of over heating-protection.

WJDZ601 and WJDZ701 don't have motor cooling fan, but the aluminum alloy housing of WJDZ601 can make the heat radiate quickly, and therere shutters on the housing to let wind in.

Q: Sometimes, Why the barrier boom would open automatically? A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch.

Please refer to last page of Barrier Gate Manual.

Or you can adjust the adjusting screw.

And the last step is to check the intensity of the spring.

Q: Whats the remote control distance? A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away.

WEJOIN recommends using the remote control within 30 meters or 50 meters.

Mechanism Core:
