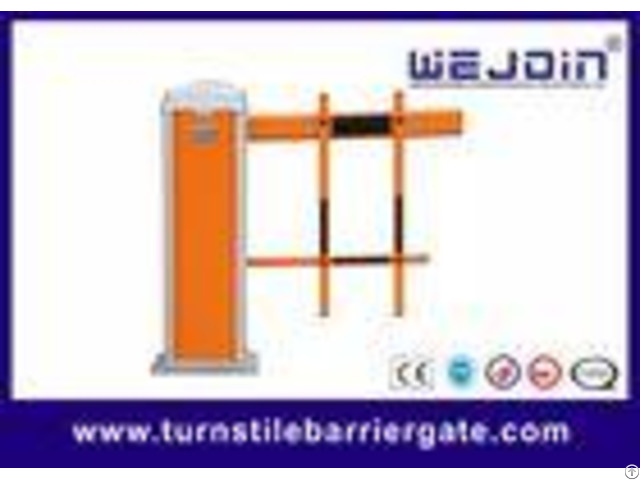

Fence Boom Electronic Parking Lot Arm Gate Waterproof For Outdoor - China

Fence Boom Electronic Parking Lot Arm Gate Waterproof for Outdoor Quick Detail (1).

Name: Bi-directional Barrier Gate (2).

Certificate: CE, ISO, (3).

Net Weight: 60KG (4).

Application : Parking System (5).

Speed: 3/6 second (6).

Feature: Manual release (7).

Rated Power: 80W (8).

Voltage: AC220V, AC110V Description Model Selection and Differences - - - - Model | Boom Shape | Max Boom Length | Speed | WJDZ60116 | Straight boom | 4.5m | 6 seconds | WJDZ60113 | Straight boom | 4m | 3 seconds | WJDZ60126 | 90 degree, Articulated boom | 4m | 6 seconds | WJDZ60123 | 90 degree, Articulated boom | 3m | 3 seconds | WJDZ60136 | 180 degree, Articulated boom | 4m | 6 seconds | WJDZ60133 | 180 degree, Articulated boom | 3m | 3 seconds | WJDZ60146 | Two-level, fence boom | 3.5m | 6 seconds | WJDZ60156 | Three-level, fence boom | 3m | 6 seconds | - - - - Functions & Features: 1 - Advanced manual release 2 - Boom can rise and fall on left/right side by setting on the same machine 3 - No need to change the balance spring when changing the booms 4 - Adopts the 3rd generation WEJOIN machine core 5 - Supports the infrared photocell for anti-bumping function (optional) 6 - Supports the external and internal vehicle loop detector (optional) 7 - Auto closing 8 - RS485 communication module (optional) 9 - Thermal radiates rapidly, no thermal protection 10 - Die-cast aluminum alloy machine core and advanced double-stage driving motor effectively solve the problem of mechanism block up 11 - Special art and craft makes out the most modernized and fashionable housing 12 - Safety photo electricity limit switch Applications: Barrier Gate with aluminum alloy housing screen uses the third generation motor.

It is stable and has long service life performance, running one million times.

And the barrier can work with parking system very well, and can be used in door and outdoor.

Specifications - - - - Name | Barrier Gate | Application | Parking System | Speed | 3/6 second | Max Boom Length | 6m | Power Supply | AC220V/AC110V | Rated Power | 120W | Motor Rotational Speed | 1400rpm | Protection Degree | IP44 | Working Temperature | -35~75 | Humidity | 90% | Remote Control Distance | 50m | Boom Dimension | 45*100mm | Net Weight | 39kg | Gross Weight | 44kg | Certificate | CE/ISO | Boom Type | Octagonal boom | - - - - Communication with customers Q: What's WEJOIN monthly production capacity for barrier gate? A: 3000 units.

Q: As for the over-heating problem of barrier gate A: WEJOIN barrier gate has motor cooling fan which can solve the problem of over heating-protection.

WJDZ601 and WJDZ701 don't have motor cooling fan, but the aluminum alloy housing of WJDZ601 can make the heat radiate quickly, and therere shutters on the housing to let wind in.

Q: Sometimes, Why the barrier boom would open automatically? A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch.

Please refer to last page of Barrier Gate Manual.

Or you can adjust the adjusting screw.

And the last step is to check the intensity of the spring.

Q: Whats the remote control distance? A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away.

WEJOIN recommends using the remote control within 30 meters or 50 meters.
