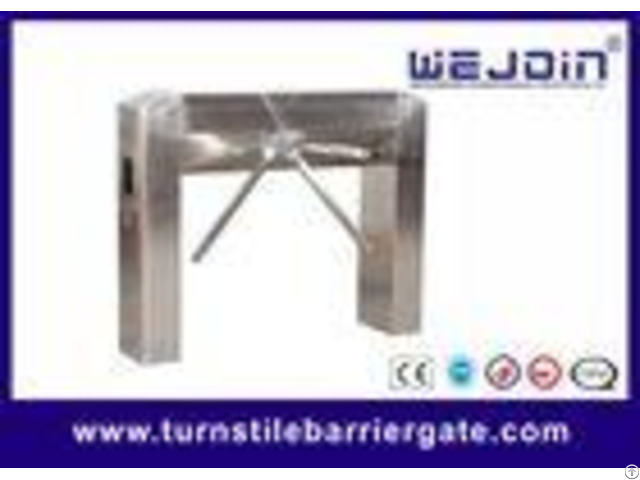

Semi Auto Tripod Entrance Turnstiles Gate With Mechanism Arc Bridge Type - China

Semi auto tripod entrance turnstiles gate with Mechanism, Arc bridge Type Function and Features: A.

Emergency Alarm interfaces available for alarm equipments under 12W or DC12V B.

Passable for bi-direction C.

Output interfaces available for passenger counters (left and right side); it is dynatron OC output with the pulse of 200MS; working with devices of DC 5V, 12V, 24V.

D.

Arm auto dropping when power off and manually put the arm up when power on E.

Person counter output is available to indicating passenger quantity; the pulse is 200MS F.

Able to avoid unauthorized access G.

Fire alarm emergency signal output: if with arm auto drop function, the arm will drop automatically after signal activation; if not, the arm rotating plate can operate freely and there is alarm after signal activation H.

Input interfaces available for left access(L), right access(R), emergency(EM), GND; EM is in priority; NO electrical replay output with pulse between 200MS~500MS; EM signal should maintain connected when any emergency happens.

I.

Self-locking within 5 seconds if there is no one passing after signal activation J.

A compact electro-mechanical design with an exquisite rotating plate and a self-lock mechanism Specifications: - - - - Model Item | WJTS112S | Semi -automatic | Semi-automatic | Material of Housing | 304 Stainless Steel | | Thickness of Housing | 1.50mm | Dimension of Housing (LWH mm) | 12352801000 | Length of Pole (out of housing) | 490mm | Net Weight | 70kg | Max Load-bearing of Pole | 80kg | Driving Force of Pole | 3KG | Rotating Direction | Double Direction | Power Supply | 220V10%, 110V10% | Frequency | 50/60HZ | Working Voltage of Motor | DC12V | Rated Power | 36W | Driving Motor | Brushless DC Motor | Input Interface | dry contact with the pulse between 200ms~500ms | Transit Speed | 30~40 persons/min | Working Temperature | 40C~55C | Working Environment | Indoor / Outdoor (Shelter) | Relative Humidity | 95% | - - - - Applications: The tripod turnstiles can be used in places such as restaurants, hotels, office buildings, museums, gyms, clubs, metros, bus stations, high class communities, intelligent buildings, hotels, subway stations and other high level venues, ect.

After-sale Service: 1 year warranty Lifetime Service with charge accordingly
