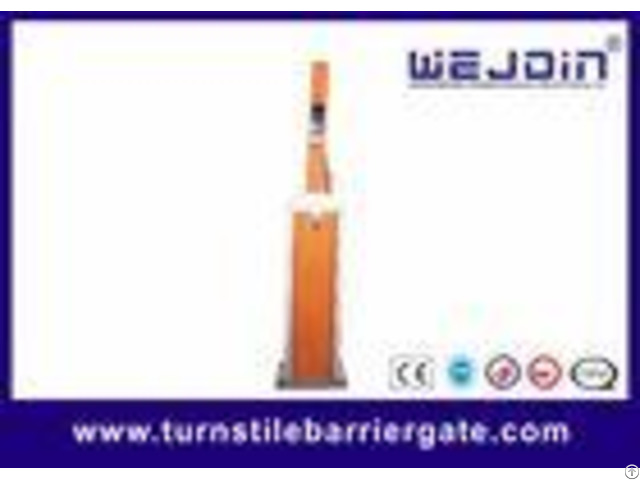

Wire Control Automatic Car Park Barrier Stainless Steel With Folding Boom - China

Wire Control Automatic Car Park Barrier Stainless Steel With Folding Boom Quick Detail (1).

Name: Bi-directional Barrier Gate (2).

Feature: Manual release (3).

Net Weight: 60KG (4).

Application : Parking System (5).

Speed: 3/6 second (6).

Certificate: CE, ISO, (7).

Rated Power: 80W (8).

Voltage: AC220V, AC110V Description Model Selection and Differences - - - - Model | Boom Shape | Max Boom Length | Speed | WJDZ60116 | Straight boom | 4.5m | 6 seconds | WJDZ60113 | Straight boom | 4m | 3 seconds | WJDZ60126 | 90 degree, Articulated boom | 4m | 6 seconds | WJDZ60123 | 90 degree, Articulated boom | 3m | 3 seconds | WJDZ60136 | 180 degree, Articulated boom | 4m | 6 seconds | WJDZ60133 | 180 degree, Articulated boom | 3m | 3 seconds | WJDZ60146 | Two-level, fence boom | 3.5m | 6 seconds | WJDZ60156 | Three-level, fence boom | 3m | 6 seconds | - - - - Functions & Features: 1 - Crank and rod structure makes the boom run placidly.

2 - Double safety limit switches (photo electricity limit switch and motor memory sensor).

3 - Reversing on obstacle.

4 - Auto-closing.

5 - Support the infrared photocell for anti-bumping function (optional) 6 - Support external and internal vehicle loop detector (optional) 7 - Traffic light interface (AC220V, can support lamp with 40W) 8 - Wire control (switch signal) /Remote control (418MHZ) 9 - RS485 communication module( optional) 10 - Open, close control interface for parking system 11 - Provide limit state signal for parking system 12 - Wheel manual release.

In case of power off, rotate the wheel manual release on the bottom of the motor to raise the boom manually.

When power on, the motor will work normally.

13 - Machine core with strong and double springs, makes the machine core work more steadily.

14 - Die-casting aluminum alloy motor, precise and good at thermal radiation.

Applications: Barrier Gate with aluminum alloy housing screen uses the third generation motor.

It is stable and has long service life performance, running one million times.

And the barrier can work with parking system very well, and can be used in door and outdoor.

Specifications - - - - Model | WJDZ601 | Working Temperature | -40+75 | Voltage | 220V10%, 110V10%, 50/60HZ | Rated power | 120W | Relative humidity | 90% | Remote control distance | 30m | Net weight | 35kgs | Speed | 3S, 6S | Max boom length | 6 meters | - - - - Communication with customers Q: What's WEJOIN monthly production capacity for barrier gate? A: 3000 units.

Q: As for the over-heating problem of barrier gate A: WEJOIN barrier gate has motor cooling fan which can solve the problem of over heating-protection.

WJDZ601 and WJDZ701 don't have motor cooling fan, but the aluminum alloy housing of WJDZ601 can make the heat radiate quickly, and therere shutters on the housing to let wind in.

Q: Sometimes, Why the barrier boom would open automatically? A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch.

Please refer to last page of Barrier Gate Manual.

Or you can adjust the adjusting screw.

And the last step is to check the intensity of the spring.

Q: Whats the remote control distance? A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away.

WEJOIN recommends using the remote control within 30 meters or 50 meters.
