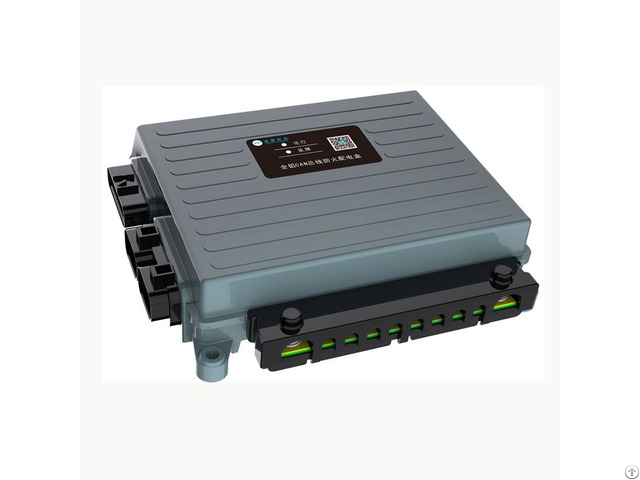

High Current Smart Mains Distribution Unit Mdu - China

High Current Smart Mains Distribution Unit MDU A smart MDU is a power distribution unit with internet networking capabilities used to remotely read power data and turn outlets on and off.

Advanced smart PDU also include adjustable set points which constantly monitor power data, and send alerts to users and other networked systems when there are excessively high or low values.

Smart PDU is also known as intelligent PDU or networked PDU.

We Provide Customized Smart Mains Distribution Unit Assembly According To You Needs.

We Are 24 Years Professional Manufacturer, Providing Customized And OEM, One Station Solution.

Technical Parameters： Dimensions： 277L*249W*68H mm

Working voltage： DC9V~DC36V

Working temperature： -40℃~80℃

Storage temperature： -40℃~80℃

Anti-seismic performance ：Meets 10~500Hz (three-way 3g/8h) test standard

Salt spray resistance： 48-hour salt spray test standard

Voltage interference ：Meets C-1 forward 110V, C-2 forward 170V, D reverse 320V test standards

Protection grade: IP66

Shell material: ADC12 aluminum alloy

Module weight : 2.16KG

Reverse connection protection: Yes

Communication interface: up to 2 channels HS-CAN, 1 channel CANFD

Power connection: one channel 200A power supply + DC-DC input, one channel 80A dual source power steering

IO resources: 10 channels inputs, 27 channels inputs, 3 channels outputs 50A, 5 channels outputs 30A, 4 channels outputs 15A, 14 channels outputs 10A Features： All aluminum CAN bus controller, in line with CAN2.0B standard, protection grade up to IP66

Professional automotive-grade components, imported high-power chips, stronger control ability, higher reliability and longer life

Can directly drive high-power components such as motors and lamps without relay transition

Programmable setting of control logic and protection current for all channels, real-time monitoring of the load status of all access channels

With output over-current protection, short circuit protection and other functions

Adopt German BOSCH and VDO company design standards, follow the "fault-oriented safety" design concept, technically guarantee that even if there is a failure, the line safety can be guaranteed Installation Notes： 1 - When designing the installation location of the power distribution box, please install it as close to the battery as possible to reduce the length of the harness

2 - The power distribution box is fixed to the side wall of the electric cabin through the four fixing holes on the periphery, and is fixed by M6 steel bolts, plus flat pads and spring pads, and the torque is 15NM

3 - Please purchase the plug-in corresponding to the harness end of the power distribution box from regular manufacturers to avoid assembly difficulties caused by counterfeiting errors
