Modular Pedestal System - China

price: 1.00 Dollar US$

Modular Pedestal System

Products Photos Catalog Modular Pedestal Photos Catalog

Wood Core Raised Floor with Modular Pedestal System china

Model: HDG.

600.40 - WQ

Size: 600×600×40mm

Finish Material: HPL 1.2mm

Core: High-density Chipboard 38mm 780kg/m3

Back Plate Galvanized Steel 0.4mm

Edge Trim: PVC 0.6mm

FFH: 150mm-1500mm

Weight 11kg/pcs

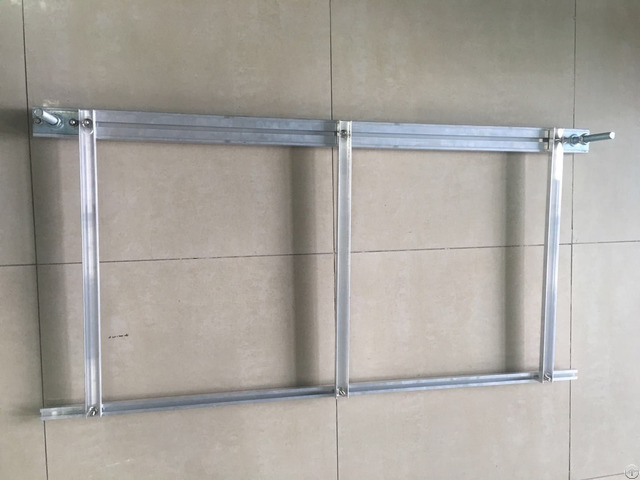

Modular Pedestal System:

Size: 2400×1200mm

Alloy Aluminum Column Track: 2400×56×38mm

Stringer: Galvanized Steel 1200×30×20mm

Tube: Galvanized Steel 250×25×2.0mm

Screwing Bolt: M16×120mm

Up Plate: 80×42×3.0mm

Down Plate: 100×3.0mm

FFH: 150mm-1500mm

Normal Adjustable Height: 300mm±40mm

Parameter Reference:

Certificate: ISO9001/ISO14001/CE: EN128 25-2001

International Standard: FS1000

Anti-Static Resistance 106~1010Ω

Concentrated Load ≥4550N/454kg/1000lb

Rolling Load ≥3560N

Ultimate Load ≥13350N

Impact Load ≥610N

Distribution Load ≥23000N/m2

Wear Performance ≥3000r

Fireproof Incombustible B1

Noiseless

Installation Convenience

Package and Shipping:

25pcs per Carton Box

2 Carton Boxes per Pallet

18 Pallets per 20GP

1350pcs / 486m2 per 20GP

Lead Time

≤1000sqm 15 Days

≥1000sqm 30 Days

We are a company professionally specialized in manufacturing anti-static Raised Access Floor, we can design and process Calcium Sulphate, Glass, Wood Core Panel with Modular Pedestal, Steel and Aluminum Perforated raised floor and especially make unique Alloy Aluminum Column Track Pedestal that can resolve all problems of installation.


Company Contact:


  • Phone: 18601113859

  • Address: B207, Kaichi Building, Daxing Industrial Area, Beijing 100162 China, beijing , beijing , China

  • Email: Email

Published date: September 18, 2019 - Modified date: September 28, 2019

  • Business Description: Raised Floor System, Calcium Sulphate Raised Access Floor, Tempered Glass Raised Floor China, Raised Access Flooring Contractors

    Raised Floor Systems, also known as Access Floors, are an elevated structural floor that is stabilized over a solid substrate, typically a concrete slab.

    A raised floor system creates a gap ideal for running electrical wiring and HVAC ducts.

    The material of Calcium Sulphate and Tempered Glass is most common.
