Motor Grader Instrument Panel Cluster

The instrument panel cluster mainly collects signals through sensors installed on various parts of the machine, and is processed by the instrument's own acquisition system or controller, and then converted into images or indicator lights (light-emitting diodes) to complete the display and alarm of analog and switching values.

And through the LCD or other modules, it can complete the indication of the working hours of the machine or the cumulative display of the working hours, and at the same time reflect the working status of the excavator through the built-in fault diagnosis system, prompting the user to maintain the host.

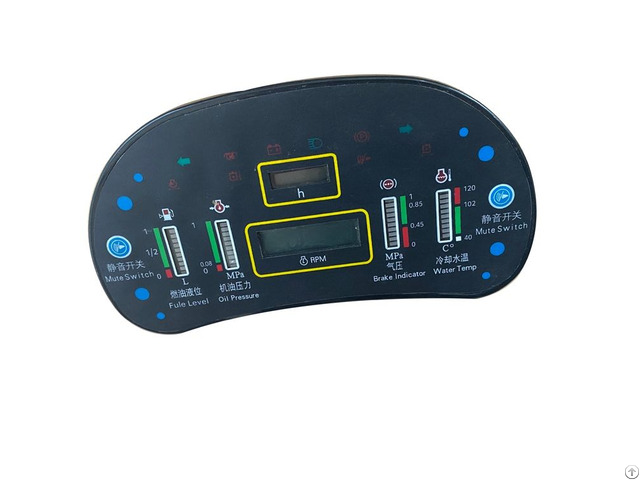

It can display left steering, right steering, charging, front light indication, brake indication, air filter alarm, working oil temperature alarm, mute indication, oil pressure, feed, cooling water temperature, chronograph display, tachometer display.

We Provide Customized Instrument Panel Cluster According To You Needs.

We Are 24 Years Professional Manufacturer, Providing Customized And OEM, One Station Solution.

Use the quick and easy judgment method to check whether the monitor is normal:

(1) When the key is opened, the charging indicator light is on, indicating that the generator is not working.

After the engine is started, the charging indicator light is off, indicating that the generator is working, otherwise the generator is damaged or the harness is poorly connected.

(2) Use the short-circuit method to quickly determine whether the "water temperature, air pressure and fuel level" of the instrument are working properly:

A.

No display of cooling water temperature:

Disconnect the connector of the engine water temperature sensor, ground the connector at the end of the wiring harness instantaneously, observe whether the water temperature grid of the monitor is all bright, and give an alarm at the same time, it proves that the monitor is normal, otherwise, the temperature sensor is faulty.

B.

No indication of fuel level:

Disconnect the fuel level sensor connector, ground the connector at the harness end instantaneously, and observe whether the fuel grid of the monitor is all bright.

If it is fully lit, it proves that the monitor is normal, otherwise, the fuel sensor is faulty.

C.

No display of air pressure:

When the engine is running, disconnect the pressure sensor connector, the monitor oil pressure is full, and short-circuit the disconnected connector to ground to see if the monitor oil pressure light grid is lit, it is normal, otherwise the pressure sensor is damaged .

(3) After the instrument is powered on, without the sensor connected, the fuel, water temperature, display 1 grid, air pressure and oil pressure display full grid! When the corresponding sensor is grounded, the fuel shows full grid, the water temperature shows full grid and alarms, and the air pressure and oil pressure show 1 grid and alarms.

We Provide Customized Instrument Panel Cluster According To You Needs.

We Are 24 Years Professional Manufacturer, Providing Customized And OEM, One Station Solution.

The instrument panel cluster is the main source of information for drivers.

With the instrument cluster all relevant engine data are presented clearly, it permits the operator to check the operating condition of the machine and provides the operator with various types of information which make it easier to operate the machine efficiently.

Our instrument clusters offer premium image quality and allow a wide range of user customizable options.

Feature:

Ergonomically designed, highly resistant stand-alone solution for in agriculture and construction machinery and special vehicles markets

Optimally protected against fluids and dust

Cost-optimized product solution

Modular product concept and customizable

Can be integrated into Driver's Workplace

We also have the construction machinery instrument panel cluster, agricultural machinery instrument panel cluster, forklift instrument panel cluster, dozer instrument panel cluster, crane instrument panel cluster, bulldozer instrument panel cluster, wheel loader instrument panel cluster, backhoe instrument panel cluster, mining machinery instrument panel cluster, rock drilling machinery instrument panel cluster, harvester instrument panel cluster, tractor instrument panel cluster, mine truck instrument panel cluster.
