Aluminum 7150 Series Sliding Door With Fly Screen Netting - China

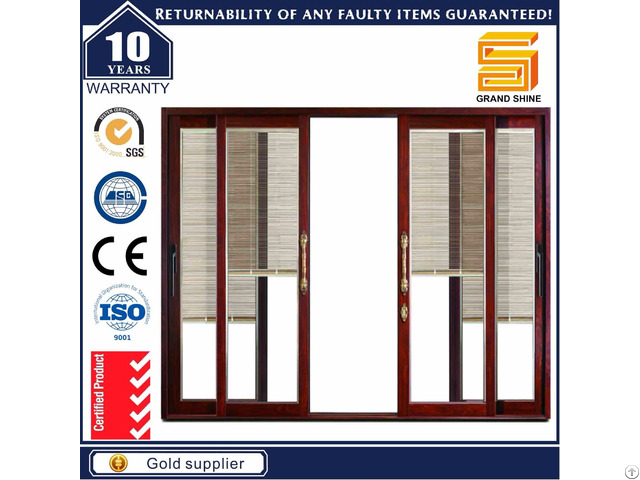

Aluminum 7150 Series Sliding Door with Fly Screen Netting

We are an excellent and experience company in "one stop solution" for aluminum curtain wall, aluminum window, aluminum door, aluminum louvers, aluminum railings, glass wall ect.

As a state-owned company, we have been established good and long term relationships with builders, developers and architects from all over the world.

Product Features:

1 - Design for energy saving aluminum sliding door

2 - Good performent of waterproof and soundproof

3 - Any design can be customized

1 - Cover 400, 000 Over 1, 000 staffs and 20 production lines

2 - Italy vertical powder coating line, daily output up to 60t-80t.

3 - High accuracy mold, customized within 10 days.

4 - 600t-2500t extruding machine, output up to 3, 000t/month.

5 - The most advanced belt conveyor for better forming.

6 - The most advanced NCN milling machine, accuracy up to 0.03mm.

7 - Auto corner machine, daily output up to 500 sets.

Technical Data:

Items Aluminum 7150 Series Sliding Door with Fly Screen Netting

Profile thickness 2.0mm

Frame width 90.2mm

Frame face width 45mm

Sash face width 48.4mm

Glazing options Type lOW-E/Reflective/Tempered /Floated/Coated

Single glazing 4/5/6/8/10/12/15/19mm etc

Double glazing Clear, Laminated, Low-E, Tempered

5mm+12A+5mm, 6mm+12A+6mm, 5mm+0.76PVC+5mm, 6mm+12A+6mm, 6mm+1.14pvb+6mm+16A etc.

Aluminum color options Anodized black, Anodized light champagne, Wooden grain, Electrophoresis silver, powder coating white/grey, etc.

Glass color options Light grey, Light blue, Dark green, Dark blue, Light green, Clear glass, Bronze, Ford blue

Accessories Handle, Hinge, Ball lock, square lock

Rubber strip for sealing, System

Retaining Washer

Performance parameter 1 - Wind pressure performance 5.0kpa GB/T7106-2008/9 Class

2 - Air permeability 0.5m3/(h.

m) GB/T7107-2008/8 Class

3 - Rain water permeability 700Pa GB/T7108-2008/6 Class

4 - Air noise performance 45dB GB/T8485-2008/6 Class

5 - Insulation performance1.1W/(m2 - k)GB/ T8484-2008/10 Class

6 - Shading performance of SC 0.2 GB/T2680-2008/7 Class

Packing information:

Material: Plastic film, Foam, Carton, Wooden box

20FT Door(1.8mx2.2m) Window(1.2mx1.2m)

90pcs 200pcs

40FT 200pcs 420pcs

40HQ 250pcs 530pcs

About GRANDSHINE:

1 - We offer one-stop service: on-site measurement-design-instal l guidance-customer visit.

2 - Over 100 projects worldwide represent the capability of GRAND SHINE.

3 - As a state owned company, we have specialized in aluminum windows and doors for 20 years.

Our Serive:

1 - Engineers provide you with the on-site measurement.

2 - R&D center offer professional solution according to you needs.

3 - We provide install guidance if needed.

4 - High production efficiency guarantees delivery in time.

5 - Anuy broken items can be replaced after sale.

Company Contact:

• Posted By: Guangdong Grand Shine Construction Material Co., Ltd.

• Phone: 86-20-38819128

• Address: #351,TianHe Road,Guangzhou,China, GuangZhou , GuangDong , China

• Email:

• Business Description: Guangdong Grand Shine Construction Material Co., Ltd. was established by Guangdong Foreign Trade Company(a state-owned company) in 2005, enjoying financial support from the provincial government, centered in Tianhe District, Guangzhou.

  It is a member of Guangdong Guangxin Holdings Group Ltd(GuangXin Group).

  As a member of the Chinese-Top-500-Companies , Guangxin Group is now running 23 companies with around 25, 000 members of staff, and acts as a shareholder of eight domestic and abroad Public Listed Company.

  Many famous brands in China come from this group, example includes: Pearl River Bright, Star Lake, Paco, Shengyi Technology, Xin Fa.

  Grandshines initial mission is to work on the abroad market for the groups aluminum products including aluminum extrusion, aluminum coil and sheet, aluminum window and door, aluminum railing and fencing, etc.
