Bent Tempered Glass - China

price: contact company for price

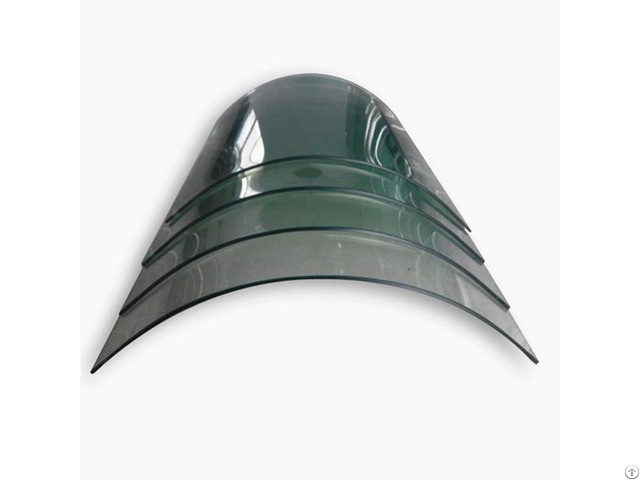

Bent Tempered Glass Curved Tempered glass

Product Description

Glass type Tempered glass

Color Clear or Color

Thickness 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 15mm, 19mm

Size Customer demand ( Min300mm X 300mm to Max2440mm X 3660mm )

Edge type Polished

Certificate ISO CE CCC BS6206

Payment term TT, L/C, Western union

Shape Curved Glass

application Glass railings, Glass Staircases, Glass Shower Enclosures, GlassPartitions, and Glass Elevator Enclosures, Glass Facade, Glass Curtain Walls etc

Architectural Glass, Curved Tempered Glass, Laminated Glass Suppliers

Product Introduction

A creative alternative for architects and designers, bent glass is tempered that is bent, during the heat-treating process, to a specified radius to create unique profiles for installations in commercial and residential applications.

Tempered Glass Product Features

Flat glass is heated until red hot, carefully formed to the desired shape, then tempered by super cooling to trap high energy within the glass.

The resulting bent tempered glass has up to a fourfold strength increase compared to annealed glass of the same thickness and if broken, breaks into an innumerable number of relatively small fragments of more or less cubicle shape

Tempered Glass Product Applications

Handrails and Spiral Staircases

Shower Enclosures

Partitions and Elevator Enclosures

Commercial/Residential Windows

Curtain Walls and Storefronts

Range hoods, Food display, Display cases, Counters

Production Range

HGG Glass has ability to complete two kinds of bending according to our customers requirements, we called B Bending and C bending.

1, For B bending glass:

Thickness: 4-12mm

The minimum radius: R≧450mm ( this figure is only for the thickness range 4mm to 6mm.

)

The maximum sizes: 1000mm ( arc length) x 2000mm (width)

The minimum sizes: 350mm ( arc length) x 200mm (width) 2, For C bending glass:

Thickness: 5-19mm

The minimum radius:

A: R≧950mm, while thickness 5-6mm

B: R≧1200mm, while thickness 8-12mm

C: R≧1800mm, while thckness 15-19mm

The maximum sizes: 2000mm ( arc length) x 3000mm ( width)

The minimum sizes: 400mm ( arc length) x 300mm ( width) 3, For D bending glass-extra large curved tempered glass / oversized curved tempered glass:

Thickness: 8-19mm

The minimum radius: R≧1500mm (R≧5000mm is better)

The maximum sizes: 3300mm (arc length) x 9000mm (width)

Quality

In accordance with GB 15763.3-2009 Chinese Standard

In accordance with JISR 3205 Japanese Standard

Pass Chinese Safety Glass Compulsory Certification (CCC)


Company Contact:


  • Phone: 86-752-3685186

  • Address: Room 1005, Tongfang Information Building, 448 Zhong Kai Da Dao, Zhongkai District, Huizhou , Guangdong , China

  • Email: Email


Published date: February 25, 2018

  • Business Description: Hopson Glass Group ( HGG ) starting glass business from 1995, has been concentrating on the development of glass processing industry for more than 20 years.

    As the most professional glass manufacturer in south of China, HGG always care about social responsibilities, human healthy, earth natural environment, making great efforts for the realization of enterprise's dream.

    As one of the most professional glass company owning designing, R&D, produce, sales all together in south of China, We mainly produces Tempered glass, insulated glass IGU, laminated glass, heat-strengthened glass, Bent tempered glass, heat bent glass, enameled glass, silkscreen printing glass, spraying painting glass, digital printing glass, anti glare glass (non glare glass) , anti reflective glass for many fields like building construction, glass and hardware furniture and appliances glass cover products.

    Our raw materials are float glass, low-Emissivity glass (low-E glass), heat-reflective glass , mirror glass, ultra clear glass ( low iron glass ), tinted glass, normal clear glass sand so on.

    Our company awarded the ISO9001: 2008 quality management system certification, national 3C certification, British BS6206 toughened glass certification and EN12150 certification.

    Meanwhile all our products and materials are qualified by SGS ROHS environmental protection requirements.

    Hopson glass group furniture glass production base and hardware furniture producion base aim to provide customers one-stop and all-around solution about furniture.

    The rang is TV table, tea table, coffee table, computer desk, dining table, office table, cabinet, LED table etc.

    All products were exported to HongKong, Taiwan, Southeast Asia, North America, South America and European over 60 countries with tremendous excellent feedback from our customers.
