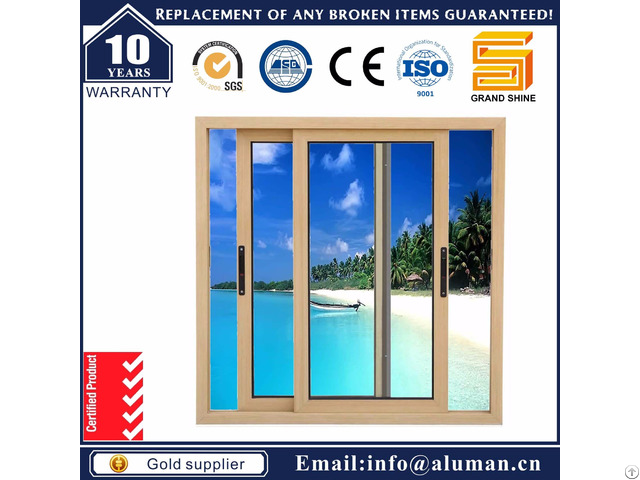

Bronze Aluminium Aluminum Double Glazing Sliding Window - China

We are an excellent and experience company in "one stop solution" for aluminum curtain wall, aluminum window, aluminum door, aluminum louvers, aluminum railings, glass wall ect.

As a state-owned company, we have been established good and long term relationships with builders, developers and architects from all over the world.

Product Features:

1 - Design for energy saving aluminum sliding window

2 - Good performent of waterproof and soundproof

3 - Any design can be customized

Factory and Advanced Equipment:

1 - Factory cover 400, 000 Over 1, 000 staffs and 20 production lines

2 - Italy vertical powder coating line, daily output up to 60t-80t.

3 - High accuracy mold, customized within 10 days.

4 - 600t-2500t extruding machine, output up to 3, 000t/month.

5 - The most advanced belt conveyor for better forming.

6 - The most advanced NCN milling machine, accuracy up to 0.03mm.

7 - Auto corner machine, daily output up to 500 sets.

Technical Data:

1, Items Bronze Aluminium Sliding Window

2, Profile thickness 1.4mm

3, Frame width 90.2mm

4, Frame face width 30mm

5, Sash face width 48.4mm

6, Glazing options Type lOW-E/Reflective/Tempered /Floated/Coated

Single glazing 4/5/6/8/10/12/15/19mm etc

Double glazing Clear, Laminated, Low-E, Tempered

5mm+12A+5mm, 6mm+12A+6mm, 5mm+0.76PVC+5mm, 6mm+12A+6mm, 6mm+1.14pvb+6mm+16A etc.

7, Aluminum color options Anodized black, Anodized light champagne, Wooden grain, Electrophoresis silver, powder coating white/grey, etc.

8, Glass color options Light grey, Light blue, Dark green, Dark blue, Light green, Clear glass, Bronze, Ford blue

9, Accessories Handle, Hinge, Ball lock, square lock

Rubber strip for sealing, System

Retaining Washer

10, Performance parameter (1)Wind pressure performance 5.0kpa GB/T7106-2008/9 Class

(2)Air permeability 0.5m3/(h.

m) GB/T7107-2008/8 Class

(3)Rain water permeability 700Pa GB/T7108-2008/6 Class

(4)Air noise performance 45dB GB/T8485-2008/6 Class

(5)Insulation performance1.1W/(m2 - k)GB/ T8484-2008/10 Class

(6)Shading performance of SC 0.2 GB/T2680-2008/7 Class

Packing information:

Material: Plastic film, Foam, Carton, Wooden box

20FT Door(1.8mx2.2m) Window(1.2mx1.2m)

90pcs 200pcs

40FT 200pcs 420pcs

40HQ 250pcs 530pcs

Company Contact:

• Posted By: Guangdong Grand Shine Construction Material Co., Ltd.

• Phone: 86-20-38819128

• Address: #351,TianHe Road,Guangzhou,China, GuangZhou , GuangDong , China

• Email:

• Business Description: Guangdong Grand Shine Construction Material Co., Ltd. was established by Guangdong Foreign Trade Company(a state-owned company) in 2005, enjoying financial support from the provincial government, centered in Tianhe District, Guangzhou.

  It is a member of Guangdong Guangxin Holdings Group Ltd(GuangXin Group).

  As a member of the Chinese-Top-500-Companies , Guangxin Group is now running 23 companies with around 25, 000 members of staff, and acts as a shareholder of eight domestic and abroad Public Listed Company.

  Many famous brands in China come from this group, example includes: Pearl River Bright, Star Lake, Paco, Shengyi Technology, Xin Fa.

  Grandshines initial mission is to work on the abroad market for the groups aluminum products including aluminum extrusion, aluminum coil and sheet, aluminum window and door, aluminum railing and fencing, etc.
