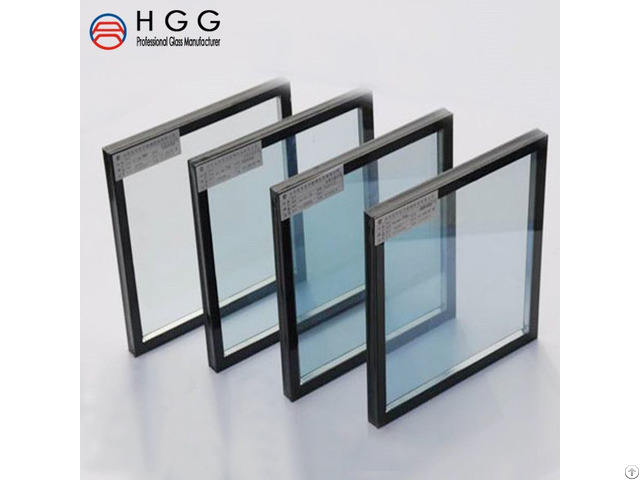

Insulated Glass for Glass Facade Glass Curtain Walls doors and windows
Product Description
Glass type Tempered insulated glass
Color Customer demand
Thickness 5mm 6mm 8mm 10mm 12mm 15mm 19mm
Size Customer demand ( Min300mm X 300mm to Max2440mm X 3660mm )
Edge type Flat edge
Quality Certificate EN12150, BS6206, ISO9001, IGCC
Payment term TT, L/C, Western union
Shape Rectangle shape, irregular shape
application Building facades, office buildings, public places, houses, curtain wall etc.
Insulated Glass, Glass Curtain Walls Insulated Glass, Reflective Insulating Glass Polished Edge Supply
Product Introduction
Insulating glass (IGU or DGU)is made of two or more than two pieces of glass between which a space with certain width is partitioned by aluminum frame filled with highly efficient molecular absorbent.
The edge of insulating glass is sealed by high strength sealing sealants.
To ensure the performance of IGU, double sealing must be used.
Butyl should be used for the first sealing, polysulfide rubber or silicon structural sealants should be chosen accoding to glazing manner.
Product Features
Insulated Glass Performance:
Heat insulation performance of IGU is the most ideal among all processed glass products available on the market.
Heat transfer coefficient k value can be effectively reduced by IGU, If inert gas as neon, argon, helium is filled, heat transfer coeffiecient can be further dramatically reduced.
improve the indoor environment, rich colors and artistry
Sound Insulation Performance:
IGU is ideal sound insulating material .
Normal IGU can reduce noise by 30 decibel, IGU filled with inert gas can further dramatically reduce 5 decibel.
Anti-dew under Low Temperature:
AS IGU is filled with enough desicant, it can effecitively absorb the vapor in the iner space or penetrated from outside to ensure the gas in inner space is absolutly dry and won't dew.
Laminated Glass Optical Performance:
Various glass substrates can be used for IGU to meet the request of sunlight transmission and reflection.
Light Weight:
Under the same condition heat insulation, the replacement of partial brick wall or concrete with IGU can reduce load of buling and simplify building structure.
Product Applications
Widely used in all kinds of curtain wall of building, indoor partition or refrgerator.
Applicable to office buildings, exhibition rooms, libraries and other public facilities and like computer room, precision instrument workshop, chemical plants and other requirements of constant temperature and humidity of the special buildings.
It can also be used for sunbathing and sunset places.
Insulating glass is mainly used for buildings that require heating, air conditioning, noise or condensation, and the need for non-direct sunlight and special light.
Widely used in residential, hotels, hotels, office buildings, schools, hospitals, shops and other occasions need indoor air conditioning.
Can also be used for trains, cars, ships, freezers doors and windows, etc.
Quality
In accodance with GB/T 11944-2002 Chinese Insulationg Glass Standard
In accordance with JISR 3209 Japanese Standard
Company Contact:
- Posted By: Hopson Glass Group Co.,Ltd
- Phone: 86-752-3685186
- Address: Room 1005, Tongfang Information Building, 448 Zhong Kai Da Dao, Zhongkai District, Huizhou , Guangdong , China
- Email:
- Website: https://www.hopsonglass.com
Published date: February 25, 2018
- Business Description: Hopson Glass Group ( HGG ) starting glass business from 1995, has been concentrating on the development of glass processing industry for more than 20 years.
As the most professional glass manufacturer in south of China, HGG always care about social responsibilities, human healthy, earth natural environment, making great efforts for the realization of enterprise's dream.
As one of the most professional glass company owning designing, R&D, produce, sales all together in south of China, We mainly produces Tempered glass, insulated glass IGU, laminated glass, heat-strengthened glass, Bent tempered glass, heat bent glass, enameled glass, silkscreen printing glass, spraying painting glass, digital printing glass, anti glare glass (non glare glass) , anti reflective glass for many fields like building construction, glass and hardware furniture and appliances glass cover products.
Our raw materials are float glass, low-Emissivity glass (low-E glass), heat-reflective glass , mirror glass, ultra clear glass ( low iron glass ), tinted glass, normal clear glass sand so on.
Our company awarded the ISO9001: 2008 quality management system certification, national 3C certification, British BS6206 toughened glass certification and EN12150 certification.
Meanwhile all our products and materials are qualified by SGS ROHS environmental protection requirements.
Hopson glass group furniture glass production base and hardware furniture producion base aim to provide customers one-stop and all-around solution about furniture.
The rang is TV table, tea table, coffee table, computer desk, dining table, office table, cabinet, LED table etc.
All products were exported to HongKong, Taiwan, Southeast Asia, North America, South America and European over 60 countries with tremendous excellent feedback from our customers.
