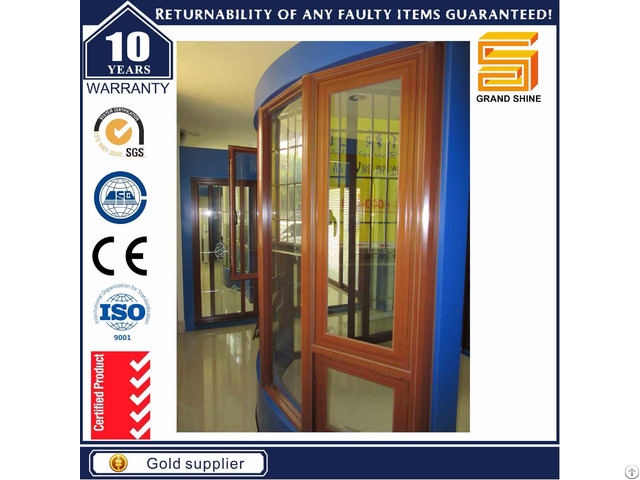

Wooden Grain Aluminum Double Glazed Casement Windows - China

Technical Data:

Items Sound Insulations Aluminu Alloy Casement Glass Window

Profile thickness 1.4mm

Frame width 50mm

Frame face width 49.8mm

Sash face width 46mm

Glazing options Type lOW-E/Reflective/Tempered /Floated/Coated

Single glazing 4/5/6/8/10/12/15/19mm etc

Double glazing Clear, Laminated, Low-E, Tempered

5mm+12A+5mm, 6mm+12A+6mm, 5mm+0.76PVC+5mm, 6mm+12A+6mm, 6mm+1.14pvb+6mm+16A etc.

Aluminum color options Anodized black, Anodized light champagne, Wooden grain, Electrophoresis silver, powder coating white/grey, etc.

Glass color options Light grey, Light blue, Dark green, Dark blue, Light green, Clear glass, Bronze, Ford blue

Accessories Handle, Hinge, Ball lock, square lock

Rubber strip for sealing, System

Retaining Washer

Performance parameter 1 - Wind pressure performance 5.0kpa GB/T7106-2008/9 Class

2 - Air permeability 0.5m3/(h.

m) GB/T7107-2008/8 Class

3 - Rain water permeability 700Pa GB/T7108-2008/6 Class

4 - Air noise performance 45dB GB/T8485-2008/6 Class

5 - Insulation performance1.1W/(m2 - k)GB/ T8484-2008/10 Class

6 - Shading performance of SC 0.2 GB/T2680-2008/7 Class

Packing information:

Material: Plastic film, Foam, Carton, Wooden box

20FT Door(1.8mx2.2m) Window(1.2mx1.2m)

90pcs 200pcs

40FT 200pcs 420pcs

40HQ 250pcs 530pcs
