Dust Suppression Wall - China

Windbreak and Dust Suppression Wall

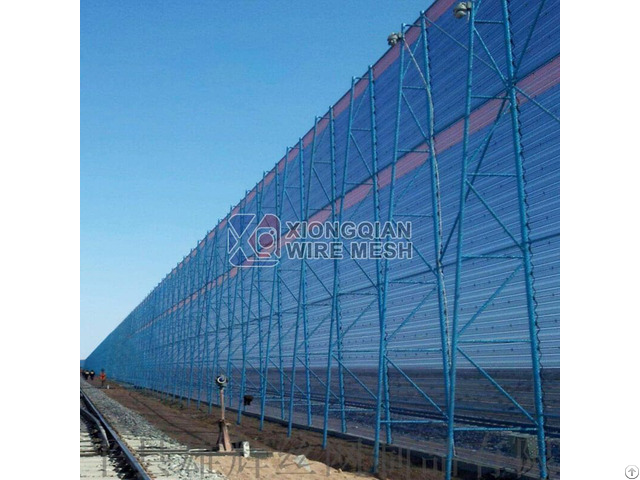

The wind dust-control wall

The wind dust-control wall is a kind of windproof dust suppression facility, mainly used in coal mines, coking plants, ports, power plants, docks and other occasions, mostly made of low carbon steel plate, galvanized plate, stainless steel plate, color coated steel plate.

Use places

Coal mines, coking plants, power plants, ports, commercial concrete stations

Uses

Mainly used in coal mines, coking plants, power plants and other enterprise plants of coal storage plant wind dust suppression; ports, docks coal storage plant and various material yards; iron and steel, building materials, cement and other enterprises of various open-air material yard dust suppression; crop windproof, sandy weather dust control and other harsh environments; railroads, highway coal gathering station coal storage yard, construction sites, road dust, highway sides, etc.

Single-layer wind and dust suppression wall dust suppression effect can reach 65-85%, double-layer wind and dust suppression wall effect can reach more than 95%.

Material

Low carbon steel plate, galvanized plate, stainless steel plate, color coated steel plate, aluminum plate, etc.

Surface treatment: electrostatic powder coating.

Product features.

1 - UV resistance (aging resistance) The surface of the product is treated with plastic spraying, which can absorb the ultraviolet rays of sunlight and reduce the oxidation speed of the material itself, so that the product has better anti-aging performance and the service life is improved.

At the same time the ultraviolet light transmission degree is low, avoiding the damage of the material in the sunlight.

2 - Flame retardant Because it is a metal plate, it has good flame retardancy, which can meet the requirements of fire and safety production.

3 - Impact resistance The strength of the product is high and can withstand the impact of hail (strong wind).

Impact strength test test, in the middle and top of the specimen, with a mass of 1kg steel ball, 1.5 meters from the peak of the wave apex of the height of free fall, the product did not break and through the hole.

4 - Anti-static The surface of the product is treated with electrostatic spraying, which can oxidize and decompose the organic dirt attached to the surface of the product after being irradiated by sunlight.

In addition, its super hydrophilicity makes the dust easy to be flushed by rainwater, which plays a self-cleaning effect and has no maintenance cost.

Type of wind shield

Single-peak type (monolithic) Forming width is between 250mm-500mm, peak height 50mm-100mm, and length within 6m can be processed.

Plate thickness 0.5mm-1.5mm, within the above range, can be processed according to customer requirements.

Twin-peak type (double body) Forming width between 400mm-600mm, peak height 50mm-100mm, and length within 6m can be processed.

The thickness of the board is 0.5mm-1.5mm, and can be processed according to the customer's requirements within the above range.

Tri-peak type (triplex) The forming width is 825mm, the peak height is 50mm-80mm, and the length can be processed within 6m.

The thickness of the panels is 0.5mm-1.5mm, which can be processed according to the drawings.

The longest length of the windproof dust suppression net shall not exceed 10 meters (the longer the net, the farther the distance of the steel structure, the worse the wind blocking effect), the peak height of 7.5cm windproof effect is the best, this is the conclusion of the National Academy of Sciences wind tunnel test.
