Gabion Stone Cages - China

Gabion Stone Cages

Product Description

The gabions are made of high corrosion resistance, high strength, ductile low carbon steel wire or PVC coated steel wire woven by machinery, and the box structure made by this net is the gabion box.

According to ASTM and EN standards, the diameter of low carbon steel wire used varies according to the engineering design requirements.

Generally between 2.0-4.0mm, the tensile strength of gabion wire is not less than 38kg/m2, the weight of metal plating is generally higher than 245g/m2, and the edge wire diameter of gabion mesh is generally larger than the mesh diameter.

The length of the twisted part of the double wire shall not be less than 50mm.

to ensure that the metal plating and PVC plating of the twisted part of the wire is not damaged.

Chinese Name: Gabion Mesh

Use: Slope support, foundation pit support

Features: High corrosion resistance, high strength, ductility

Material: Low-carbon steel wire or PVC-coated steel wire

Method: Mechanical braiding

Tensile strength: 38kg/m2.

Application

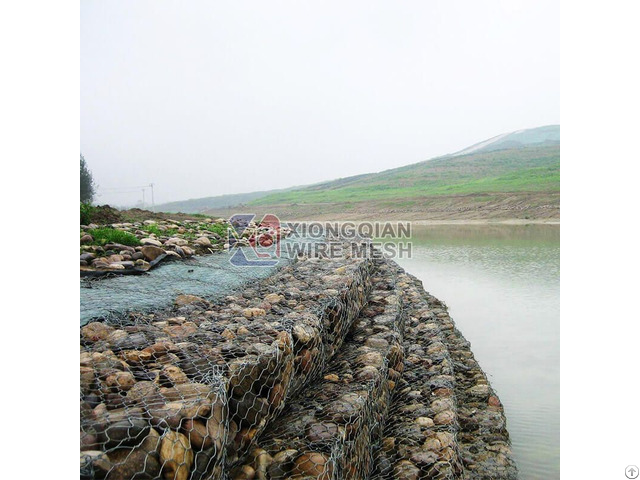

Gabion mesh can be used for slope support, pit support, mountain rock face hanging net spraying, slope vegetation (greening), railroad highway isolation barrier net, it can also be made into box cage, net mat, used for river, dam and sea pond anti-scouring protection, reservoir, river interception with net box.

The most serious disaster of rivers is that the water scours the river banks and damages them, causing flooding, resulting in a lot of loss of life and property and a lot of soil erosion.

Therefore, when dealing with the above problems, the application of the ecological grid structure becomes one of the good solutions, which can make the riverbed and riverbank protected for a long time.

1 - The flexible structure can adapt to the changes of the slope without being destroyed, and has better safety and stability than the rigid structure.

2 - Stronger scouring resistance, able to withstand water flow velocity up to 6m/s.

3 - The structure is permeable in nature, which is more inclusive to the natural action of groundwater and filtration, so that the suspended materials and silt in the water can be settled in the rock-fill joints, thus facilitating the growth of natural plants and gradually restoring the original ecological environment.

Gabions are wire or polymer mesh format fabrications that hold rockfill in place.

Wire cages are structures made of woven wire mesh or welded wire.

Both structures can be electroplated, and woven wire boxes can be additionally coated with PVC, using weather-resistant hard stones as filler, which do not break quickly due to abrasion in the gabion or gabion sinker.

Gabions with different types of blocks have different characteristics.

The multi-angle blocks can interlock well together, and the gabions filled with them are not easily deformed.

In landscaping projects, highway slope protection, embankment protection and mountain steep slope re-greening have always been a headache for engineers and technicians.

Over the years, they have been exploring a process that can meet the requirements of mountain and bank stability protection, but also achieve the effect of greening the environment, while also economic and convenient.

Gradually, this process began to surface, it is the ecological gabion application process.

Ecological gabion application process is a structure of rectangular cages of different sizes woven with high strength galvanized steel wires and filled with stones.

After this structure is applied to the bank slope protection, the gaps between the stones are continuously filled with soil under the double action of man-made and natural factors.

Plant seeds gradually take root and grow in the soil between the stones, and the root system firmly fixes the stones and soil.

In this way, the slope can be protected and greened, and the effect of ecological improvement and soil and water conservation is also very significant.
