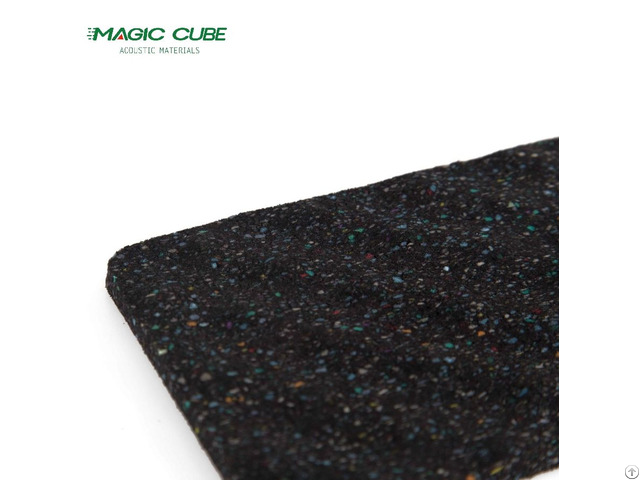

Acoustic Soundproofing Mat - China

The Introduction

Acoustic soundproofing mat is stable, durable and breathable.

Acoustic soundproofing mat is a durable sound-proof and shock-absorbing floor material, which can effectively reduce noise.

It is made of rubber particles combined with polyurethane adhesive.

The specifications

● Material: Rubber granules mixed with rubber foam PU

● Thickness: 10mm (customzied thickness is available)

● Dimension: 1000*1000 mm (customzied size is available)

● Density: 550~750kg/m3

● Fire Resistance: Grade B

● Shape: Roll / Sheet

● Temperature Range: -40°C to +110°C The features

●Strong bearing force ●Multi-layer composite compressive structure

●High wear resistance of elastic material and load deformation

●Moisture proof ●Good sound insulation and shock absorption performance.

●High density to offer excellent sound energy reduction and vibration wave transmission loss.

Acoustic soundproofing mat applications Particularly suitable for floor sound insulation and vibration reduction to reduce low-frequency structural resonance, such as hotels, clubs, hospitals, schools.

The installation method

1 - Sweep the ground clean to make sure that there are no protrusions and flat.

2 - Put acoustic soundproofing mat in the floor and the joints should be neatly sealed.

If the edges and corners are uneven, it should be cut with a knife to make sure the edge is flat.

Then apply the special glue on the joints.

And Stick it firmly and seal it tightly with tape to prevent cement mortar from penetrating under the sound insulation pad during concrete construction, causing a sound transmission bridge.

3 - Fold up the edge of the sound insulation pad on the surrounding of walls, and apply construction glue to make it firm.

The height of the turn-over pads should be same as the total thickness including the concrete and surface layer.

All the joints should be covered with tape and paste tightly.

4 - Pave the concrete with a thickness of not less than 40mm C20 fine aggregate concrete.

The concrete needs to be equipped with reinforced steel mesh.

The acoustic soundproofing mat is commonly used 5mm.

The steel mesh cannot pierce the acoustic soundproofing mat and the steel mesh must be in the middle and upper part of the concrete layer.

Then pave the concrete with a thickness of not less than 10mm And the water content of C20 concrete should not be too large, which may easily lead to cracking.

It is recommended to increase the coverage and maintain moisture for no less than 3 days.
