Flexible Metal Conduit Ul1 Pswg Series - China

Flexible Metal Conduit (UL1)-PSWG Series

PSWG Series

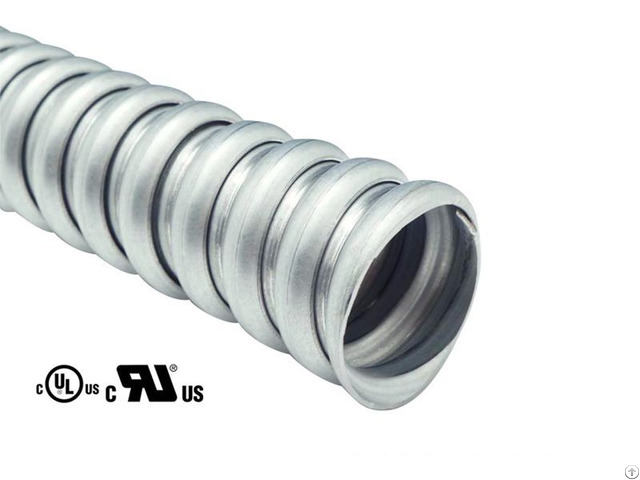

Galvanized Steel Flexible Metal Conduit (Standard Wall)

PSWG series is completely meet with UL1 standard for the performances of flexibility, pull and impact resistance.

Applicable for wiring protection in/on building, office, light fixture, machines, elevator, data center, cable harness and etc.

Flexible Metal Conduit, Aluminum Flexible Metal Conduit, Galvanized Steel Flexible Metal Conduit Supplier

Material: Galvanized Steel

Temperature Range: -50℃~+350℃

IP Rating: IP 40

Flexibility: High

RoHS Compliance: Yes

Flexible Metal Conduit, Non-Metallic Flexible Conduit, Metallic Fittings Supplier Nominal Conduit Size (mm) Nominal Conduit Size (inch) Part Number ID (mm) OD (mm) Bending Radius (mm) Package / Roll (ft/m) Measurement(LxWxH mm)

- 5/16 - - - - - -

12 3/8 PSWG - 3/8 9.52 ~ 9.96 14.22 ~ 15.49 50 100 / 30.5 320 * 320 * 150

16 1/2 PSWG - 1/2 15.88 ~ 16.38 21.84 ~ 23.37 75 100 / 30.5 380 * 380 * 150

21 3/4 PSWG - 3/4 20.62 ~ 21.21 26.54 ~ 28.07 100 100 / 30.5 450 * 450 * 180

27 1 PSWG - 1 25.40 ~ 26.42 33.02 ~ 35.05 125 100 / 30.5 550 * 550 * 220

35 1 - 1/4 PSWG - 1 - 1/4 31.75 ~ 33.02 39.37 ~ 41.40 160 50 / 15.3 500 * 500 * 180

41 1 - 1/2 PSWG - 1 - 1/2 38.10 ~ 40.01 46.99 ~ 49.53 190 50 / 15.3 580 * 580 * 200

53 2 PSWG - 2 50.80 ~ 52.83 59.69 ~ 62.23 255 25 / 7.6 550 * 550 * 200

63 2 - 1/2 PSWG - 2 - 1/2 > 63.5 72.64 ~ 77.72 320 25 / 7.6 700 * 700 * 200

78 3 PSWG - 3 > 76.2 85.34 ~ 90.42 380 25 / 7.6 750 * 750 * 250

103 4 PSWG - 4 > 101.6 110.74 ~ 115.82 510 25 / 7.6 900 * 900 * 300

Company Contact:

• Posted By: Zhejiang Flexible Technology Co., Ltd

• Phone: +86 573 8483 3888

• Address: No. 50, Zhijiang Road, Jiashan Economic Development Zone, Jiaxing City, Zhejiang Province, China, Jiaxing , Zhejiang , China

• Email:

• Website: https://www.conduit-flexible.com

• Business Description: Established in 2007, Zhejiang Flexible Technology Co., Ltd. has developed into a leading manufacturer in the flexible conduit market.

  From day one, we have always been deeply committed to manufacturing, designing and marketing multiple types of metallic and non-metallic conduits, conduit fittings, fiber optic cables, and fiber optic patch cords.

  With nearly eight years of experience behind us, we have become one of the most prominent suppliers on the market.

  We are one of China's most respected conduit solution providers, offering the broadest range of products in our field for even the most demanding market.

  We specialize in producing flexible conduits, which can be divided into multiple categories, according to structure, material, performance and application.

  Our conduits can be made from galvanized steel, be square locked and interlocked flexible metal conduits, cable conduits and shower hoses, just to name a few.

  With a wide assortment of fittings and accessories, they are widely used in building cable systems, machinery, petrochemical and metallurgical facilities, and other industries that require wire and cable protection.

  Our flexible tubing can also serve as a liquid or gas transmission medium.

  We are the flexible metal conduit, liquid tight non-metallic flexible conduit, metallic fittings supplier.

  Our company has also placed a strong significance to the introduction and application of world class technology and production equipment, as well as the reinforcement of the production process control, in order to provide high quality conduits, conduit fittings and armored fiber optic cables to meet a demanding market.

  We have also proudly provided a number of new production and test equipment for fiber optic cables and patch cords.

  We have also obtained certificates such as the ISO9001: 2008, UL, CE, TUV and more.

  Our company strives to offer the highest quality products, superior services and new technologies for our flexible conduit products.

  Because we proudly provide a stable and reliable quality in our products and services from before the sale and even after the sale, we have established a long term business partnership with China Telecom and China Unicom.

  We offer a commitment to excellence and faithfulness to our customers has allowed us to quickly grow into a trusted provider, as our products come highly recommended by both domestic and foreign markets.
