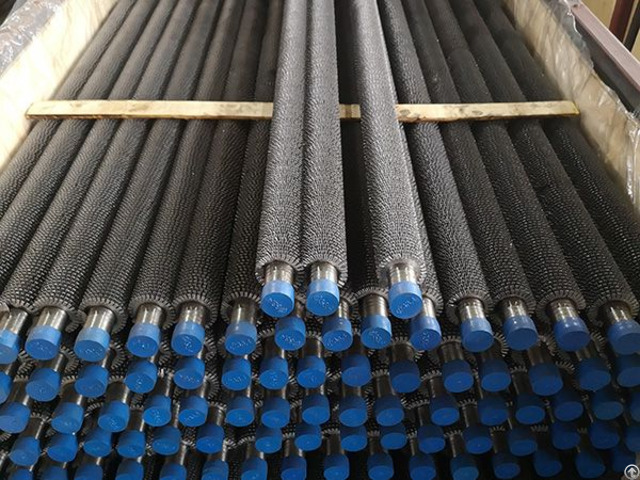

High Frequency Welded Hfw Fin Tube - China

High Frequency Welded fin tube also called solid type fin tube, use steel or stainless steel strip directly welded to tube surface by HFW.

Can improving heat transfer efficiency much more than bare tube.

Due to the tight welding of the fins to the base tube, these finned tubes are often used in vibrating conditions.

Fin type have Serrated fin and flat fin.

Base tube material:

stainless steel, carbon steel, alloy steel

ASME SA213/ASTM A213 TP304/304L  TP316/TP316L TP321 TP310S  TP317,

ASME SA106/ASTM A106 Gr B Gr C,ASME SA179/ASTM A179,ASME SA192/ASTM A192

Fin material:

Steel, Stainless steel.

Stainless steel High Frequency Welded fins tube, carbon steel High Frequency Welded fins tube  Duplex High Frequency Welded fins tube  super duplex High Frequency Welded fins tube  Air cooler fins tube, Air preheater fins tube.

Extruded fins tube  Serrated fin tubes  L Type fins tube  G Type fins tube  LL Type fins tube  H Type fins tube  KL Type fins tube  HFW fin tube laser welded fin tube.

Base pipe O.

D: 15.88-165mm

Fin height: 6-50mm

Fin thickness: 0.3-0.5mm

Fin pitch: as customer's request.

End: Plain Ends, Beveled Ends

No fin area on both side: As Customer's request.

Application:

Air Cooler,Charge Air Chiller, Condenser,Evaporator, Fluid Cooler, Gas Cooler,Oil Cooler, Radiator, Refrigeration,Steam to Air Heat Exchanger,superheater etc.

Package:

In bundles, plywood cases, wooden cases with water-proof package, etc.
