Pvdf Coated Aluminum Solid Panel - China

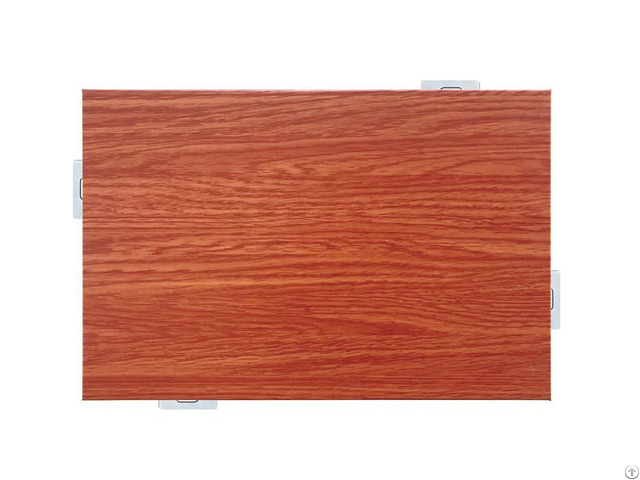

SAP in Wood Color

Wood Color Solid Aluminum Panel, PVDF Coated Aluminum Solid Panel, Powder coated Aluminum Solid Panel

Aluminum solid panel with stone veneer is a kind of high-grade architectural ornament material for buildings like business center, subway station, airport, train station and so on.

In the world, more and more people use aluminum solid panel for their project, because of aluminum solid panel with stone or wood veneer can keep more than 15 years, and aluminum solid panel can be processed into many different shapes by their design.

Aluminum solid panel with stone or wood veneer have many kinds of design with painting, you can choose from them, or if your project is big enough we can design new painting for you follow your idea.

Technical Specification:

Coating: PVDF or Powder coated, Color: Follow your requirements, Thickness: 2.0~4.0mm, or according to your requirements, Size: Follow your design (less than 1800*6000mm).

No.

item Performance

1 Appearance quality No flow lines, no streaks, no blisters, no foreign substance, no other surface imperfections

2 Film thickness Average: 48umMin.

41um

3 Dry-fil hardness ≥3H

4 Gloss value Gloss value: 34.2~39.1; Average: 37.2

5 Impact resistance 50kg·m, no removal of film from substrate

6 Abrasion resistance 5.3L/um

7 Film adhesion Drying adhesion Grade 0 Wet adhesion Grade 0 Boiling water adhesion Grade 0

8 Chemical resistance Hydrochloric acid resistance No change Nitric acid resistance No changes such as blistering etc.

Δ E=0.75 Mortar resistance No change Solvent resistance No base exposed

9 Salt spray resistance (4000h) Grade 1

10 Humidity resistance Grade 1

11 Artificial weathering (4000) Color retention 1.31 Gloss retention 85% Others Grade 0
