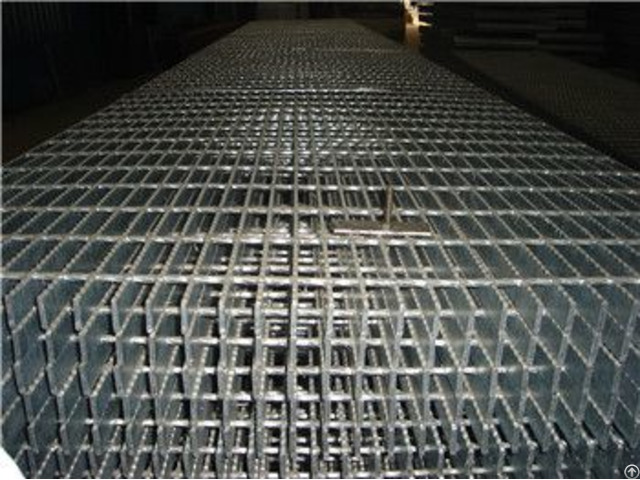

Serrated Anti Slip Forge Welded Steel Grating Panels - China

Serrated anti-slip forge welded steel gratings panels secifications:

1) Bearing Bar (Load Bar) Specifications (mm):

The specification of plain type and serrated type bearing bar is 25 x 3 to 100 x 8; The specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.

2) Bearing Bar Pitch (center to center):

12.5, 25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc, also be according to client's requirement and 30, 40, 60mm are recommended, America standard is available <1'' x 3/16'', 1 1/4'' x 3/16'', 1-1/2'' x 3/16'', 1'' x 1/4'', 1-1/4'' x 1/4'', 1 1/2'' x 1/4''(19-w-

3) Material: Mild Steel (Low Carbon Steel) or Stainless Steel

4) Surface Treatment: Untreated, Painting or Hot DIP Galvanizing

5) Steel grating standards:

-China: YB/T4001-1998

-USA: ANSI/NAAMM (MBG531-88)

-UK: BS4592-1987

-Australia: AS1657-1985

-Japan: JJS

Company Contact:

• Posted By: YANTAI HUALIAN STEEL STRUCTURE CO., LTD

• Phone: +86-13953555900

• Address: NO. 276 XINGFU MIDDLE ROAD, ZHIFU DISTRICT, , Yantai , Shandong , China

• Email:

• Website: http://www.ythlss.com

• Business Description: Contact person: Kun Li

  Email: sales@ythlss.

  com

  Tel: 86-535-6388735

  Mobil e: 86-13953555900

  Web: www.

  ythlss.

  com

  Yantai Hualian Steel Structure Co., Ltd (Acronym as YTHL) is a modern company specializing in manufacturing and supplying grating, drainage, handrail, perforated and expanded metal products.

  Because of the diversity of our products, we could supply the overall solution for the industrial platforms.

  Armed with the latest technology in computer aided design and 3-D software applications and experienced engineers, we could put forward to safe and economical design solutions for our customers.

  With sophisticated procedure, and professional manufacturing process, which make us good quality for industrial products.

  We have always provided , "customized" products to satisfy the client's most varied needs, such as gratings, handrails, stair treads, ladders and so on.

  YTHL has its own exporting and importing rights registered in Chinese Customs.

  The products have sold at home and abroad, such as Australia, European countries, Mid-east, Africa, Korea, and so on.

  Based on our experienced project management, we can effectively coordinate you schedule to ensure your job site receives the products they need, and when they need it.

  Gratings are clearly marked and identified on our supplied gratings & drawings for accurate field installation.

  Because of our dedication, full- scale technical service and supports, high-level products, YTHL is highly spoken of in domestic and overseas.

  YTHL is dedicated to innovation and high efficiency to offer our customers and potential customer.
