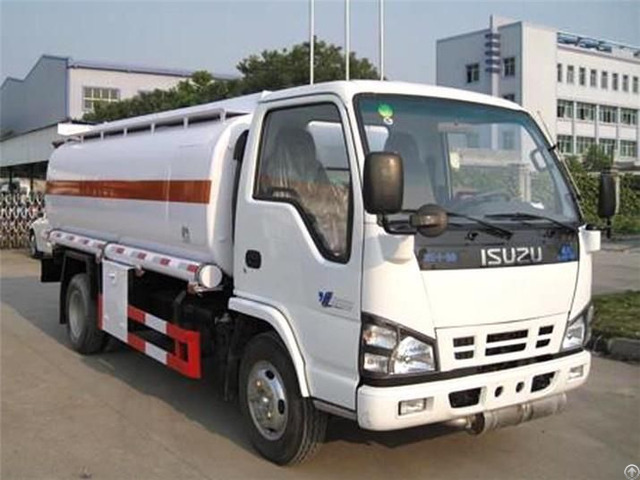

Brand New Isuzu 120hp 5cbm Fuel Dispenser Truck - China
price: 22000.00 Dollar US$
Brand New Isuzu 120HP 5cbm Fuel Dispenser Truck 5t Diesel Refueller Tanker Haiti for Sale Fuel tank truck: according to the different types of transport medium, configuration and different places called, there are many different titles, such as tank car, tank truck, oil truck, oil supply car, oil puller, flow refueling car, tax control refueling car, computer tanker, diesel transporter, gasoline transporter, coal tar carrier, Lubricating oil transporters, edible oil transport vehicles, crude oil transporters, heavy oil transporters, oil tanker and so on.
All the tank trucks can be designed as chemical vehicles, all kinds of heating and insulation tanks; all the tank cars can be equipped with computer tankers; wide range of tonnage selection to meet the user‘s needs; the tank has multiple anti wave baffles.
High pressure gas leakage test is used to make the tank body with high strength, stable center of gravity and safe and stable transportation of vehicles.
Description: 1 - Tank material: we can provide carbon steel tanks, stainless steel tanks, manganese steel tanks, aluminum tanks, steel with plastic (or rubber) tanks and plastic tanks.
2 - Good welding: tank body is adopted an advanced automatic vertical welding techniques and head arc butt welding technology, as well as the whole- steel forming a composite.
3 - High safety: equip with active and passive emergency protection devices, to provide full closure remote manipulation of materials handing functions.
Equip separators [Baffle] to prevent surging of liquid towards bulk head
4 - Function: The tank body is suit for loading light fuel oil, heavy oil, sulfuric acid, hydrochloric acid, nitric acid, caustic soda hydrogen peroxide, alcohol, benzene, cooking oil and so on.
5 - Oil pump: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.
6 - Tank shape: shape of tank body can be designed to square round, round, Heat insulation device such as heating pipes, insulation.
7 - Refueling machine: the refueling machine we use are tax controlled oiling machine with accurate figure of volume, sum of money, etc.
8 - Optional: reading meter for outlet and inlet, self-discharge valve at rail or side of tank body, compartment quantity according to the demand.
Condition New condition/LHD/4X2 Chassis Brand isuzu Curb weight(kg) 5260kg Wheelbase(mm) 3360 mm Dimensions(mm) 5300X1900X2200 mm Front/Rear Axle loading(kg) 2500/4800 kg Wheel track (front/rear) (mm) 1880/1800 mm Front/Rear overhang(mm) 1430/2370 mm Approach/Departure angle(°) 26/20 Max.
driving speed(km/h) 95 km/h Clutch Reinforced diaphragm clutch Brakes Service brake: dual circuit compressed air brake Parking brake: (emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust valve brake Steering Gear Power steering, hydraulic steering with power assistance Tire Quantity 6 pcs with one spare tire Specifications 9.00R20 Transmission Manual type, 6 Forwards and 1 reverse Cab It can accommodate three people.
With Air Conditioner Engine Brand isuzu engine Model 4KH1-TCG40 Fuel type Diesel Displacement(ml) 2999 ml Power(kw) 88kw Horsepower(HP) 120HP Cylinder number 4 Emission standard Euro V Fuel Tank Fuel tank Capacity(cbm/liters) 4~5cbm/4000~5000Liters Tank material Tank material: Q235 high tensile strength steel.
Thickness(mm) 5mm of tank and 6mm of end plate Compartment No.
1 Baffle 1 No, 4 mm carbon steel Manhole cover 1 manhole cover, ∮500mm 1 set with breather valve Bottom Valve 1 set of API Pneumatic Bottom Valve Discharging valve 1 set ∮ discharging valve Handrail Two sides Ladder At rear of tank Painting Color and design as customer‘s requirement
Company Contact:
- Posted By: Chengli Special Automobile Co., Ltd.
- Phone: 13872886372
- Address: Chengli Automobile Industrial Park, South Suburb, Suizhou City, Hubei Province, China, suizhou , Hubei , China
- Email:
- Website: https://www.wltrucks.com
Published date: August 17, 2020
- Business Description: Chengli Special Automobile Co., Ltd. custom manufactures various types of fuel oil tank trucks, vacuum sewage suction trucks,truck with cranes, wrecker tow trucks, garbage trucks, fire fighting trucks, ambulances, van trucks and special operations vehicles, and semi-trailers for dangerous goods transportation.
