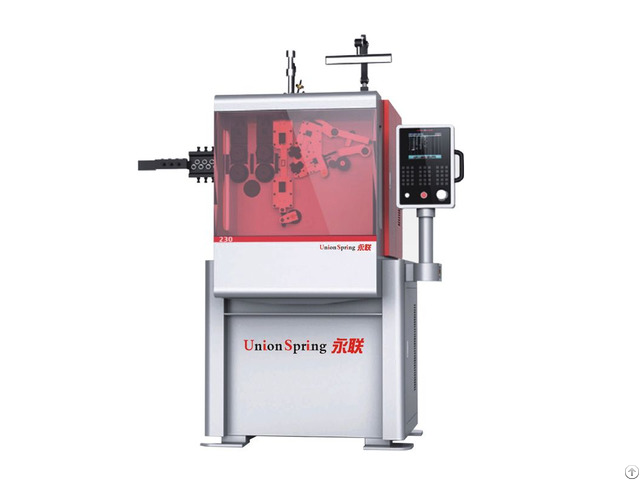

Dual Axis Spring Coiling Machine - China

MODEL NO.

US-212 Number of Axis 2

Wire Diameter 0.2-1.2 MM

Maximum Outside Diameter 20 MM

Spring Index 3

Number of Wire Feeding Wheels 2

Wire feeding Motor 1 KW

Cam Motor 1 KW

Machine Size 800*750*1450 MM

Machine Weight 450 KG Some important aspects of our Spring Coiling Machines are as follows:

1 - The 2 Axis computerized spring coiling machine is divided into a camshaft and a feeding pool.

The spacing, outside diameter and cutter are driven by the cam motor.

The feeding line is controlled by a separate feeding motor.

2 - The machine is equipped with Taiwan's computer control and Japan's imported Servo motor.

It is convenient to use and operates very fast with high speed and precision.

3 - The cam and feed line can be operated independently or in sync.

The length of feed wire is unlimited and online programming is available.

4 - The spring coiling machines can process a wide range of spring products.

Few examples are various compression springs, oil seal springs, battery springs, conical springs, double conical springs, safety springs, magazine springs, torsion springs and so on.

Company Contact:

• Posted By: Union Spring (Shenzhen) Technology Co., Ltd.

• Phone: 008613828877251

• Address: 1-2 Floor, 19th Building, 2nd Industrial Park, Heshuikou, Gongming, Shenzhen , Guangdong , China

• Email:

• Business Description: Union spring (Shenzhen) Technology Co.

  Ltd. Is a hi-tech enterprise.

  We are engaged in Research & Development, designing, manufacturing and sales of CNC Spring Machines as well as 2D & 3D Wire Bending Machines.

  We have been into manufacturing of CNC Spring Machine industry for 20 years now.

  At present we have a huge experience of manufacturing Computerized Spring Coiling Machines, Computerized Spring Forming Machines, Camless Spring Forming Machines, Spring Coiling Machines with Torsion, 2D & 3D Wire Bending Machines, and Furnace.

  All these are useful in production of Pressure spring, tension spring, torsion spring, wire bending, etc.

  All these machines are capable to meet the requirements of many type of industries, to name a few; Electronics, Electrical, Toys, Automobiles and so on.

  Union Spring is located in the heart of Chinese Industrial City of Shenzhen from where the Industrial Revolution of China started.

  It is located in Guangdong Province which is well known world over for quality products.

  We have nearly 4000 square meters of R&D and assembling work shop.

  Our another facilities in Huizhou and Shaoguan - both again in Guangdong - have nearly 1000 square meters of processing workshops.

  We have a strong team who work relentlessly for Production & R&D.

  Union Spring has been selling well in local markets of mainland China, with more than 10000 spring producing units all over China using our machines.

  We have a sound sales and service team to take care of the network that has been in place.

  Besides, we are also selling our products to various countries all over the globe.

  Some of the markets, where our machines has carved a niche for themselves, are India, Vietnam, Egypt, Burma, the Middle East, Southeast Asia, Eastern Europe, Russia.

  Union Spring has always focused on quality, every minute detail, and after sale services.

  Our machines are deeply loved and praised by all our satisfied customers all over the globe.
