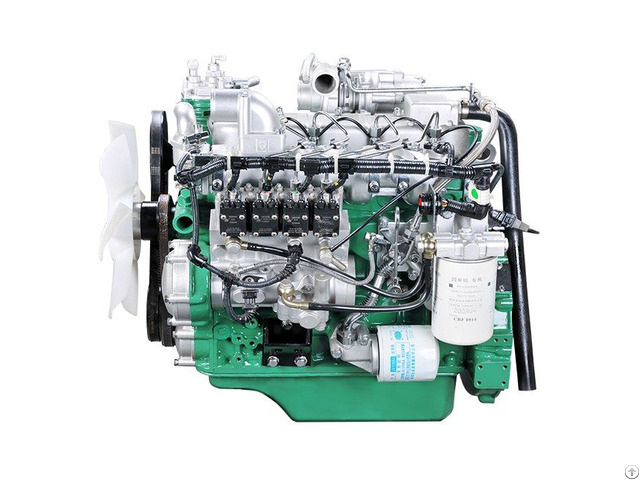

Euro Iii Vehicle Engine 4dw Series - China

Independent R & D on design of combustion chamber, intake and exhaust passage, three holes position on cylinder cover, and other technology, diesel engine inlet and exhaust system as well as combustion system are in the leading position at home;

Optional electric-controlled high pressure common rail system, with higher oil injection pressure, greater atomization rate and more sufficient combustion.

Model 4DW93-78E3 4DW93-84E3

Type 4-cylinder in-line, direct injection, turbocharged&intercoo ling, common rail/electronic unit pump

Bore×Stroke (mm) 90×100

Valves/cylinder 2

Displacement (L) 2.54

Rated power 61 67

Rated speed (r/min) 3000

Net power/speed (kW/r/min) 57 62

Maximum torque (Nm) 210 220

Maximum torque speed (r/min) 1900-2100

Fuel consumption (g/kW·h) ≤ 205

Smoke (m-1) ≤ 0.8

Noise dB(A) ≤ 95.5

Emission Compliant (TAS) EURO Ⅲ

Net Mass (kg) 250

Length×Width×Height (mm) 725×655×700
